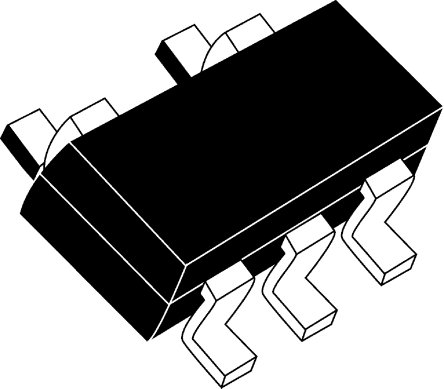

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC78LC30NTRG is a 3V fixed output low-dropout (LDO) Linear Regulator features an ultra-low quiescent current of 1.1µA. The device contains a voltage reference unit, an error amplifier, a PMOS power transistor and resistors for setting output voltage. The device has been designed to be used with ceramic capacitors and requires a minimum output capacitor of 0.1µF.
Excellent line and load regulation
2.5% High accuracy output voltage

Show

MC78LC30NTRG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TSOT-23-5
Current Rating	80.0 mA
Power Rating	0.14 W
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Input Voltage (DC)	12.0V (max)
Output Voltage	3 V
Output Current	80 mA
Supply Current	3.6 µA
Number of Positions	5 Position
Polarity	P-Channel
Power Dissipation	140 mW
Quiescent Current	0.0011 mA
voltage rating	0.03V @1mA
Input Voltage (Max)	12 V
Input Voltage (Min)	4 V
Output Voltage (Min)	3 V
Output Current (Max)	80 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	140 mW
Accuracy	±2.5 %
Input Voltage	≤12 V
	Show
Size-Length	3 mm
Size-Width	1.5 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99
