MC78M05ABDTG ON Semiconductor - Voltage Regulators

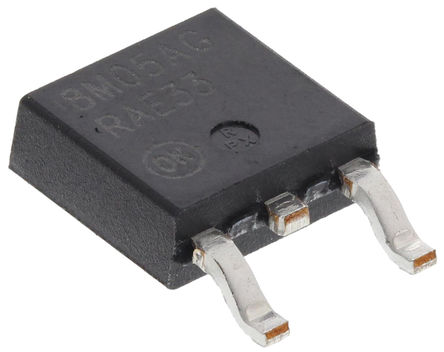

Image is for your reference only,please check specifications for details

MC78M05ABDTG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC2347500
Category:
Voltage Regulators
Package:
TO-252-3
Datasheet:
Datasheet 3D Model
Description:
Линейный регулятор напряжения, положительный, 5В, 500мА. Выходное напряжение: 5В; температурный диапазон: от -40° до +125°C. Тип корпуса: DPAK (одинарная группа), формат патерна: TO-252, количество трубок: 75.
Stock Locations:
Availability:
77 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.86

Updated at 31/10/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

MC78M05ABDTG – это трехконтактный положительный регулятор напряжения с максимальным выходным током в 500мА. Он предназначен для регулировки напряжения на локальном уровне и внутри карты. Устройство имеет внутреннее ограничение тока, схему термического отключения и механизм компенсации потерь для входного транзистора. Это делает устройство очень надежным в большинстве условий эксплуатации. Максимальный выходной ток при достаточном отвода тепла составляет 500мА.
Не требуется использование внешних компонентов.
Внутреннее защитное устройство от перегрузки из-за нагрева.
Внутреннее ограничение тока при короткомесквизии.
Механизм компенсации потерь для входного транзистора.
Температурный диапазон: от -40° до 125°C.

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Operating Voltage	7V ~ 20V
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	5 V
Output Current	500 mA
Number of Positions	3 Position
Polarity	P-Channel
Quiescent Current	3.2 mA
voltage rating	2V @350mA
Input Voltage (Max)	35 V
Input Voltage (Min)	10 V
Output Voltage (Min)	5 V
Output Current (Max)	0.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±2 %
Input Voltage	35 V
	Show
Size-Length	6.73 mm
Size-Width	6.22 mm
Size-Height	2.38 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
