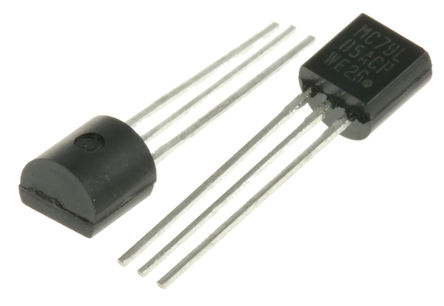

MC79L05ACPG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC3408248
Category:
Voltage Regulator
Package:
TO-226-3
Datasheet:
Datasheet 3D Model
Description:
Linear Voltage Regulator, Negative, 5V, 100mA Vout: -5V; TJ = 0°C to +125℃, TO-92 (TO-226) 5.33mm Body Height, 2000-BLKBG
Stock Locations:
Availability:
667 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.21

Updated at 01/11/2025 10:30:15(UTC+8)
