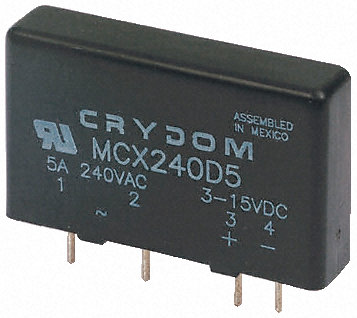

Image is for your reference only,please check specifications for details
- MCXE240D5 - Crydom
-
Manufacturer:Crydom
-
ManyChip's Part#:MC12001266
-
Category:Solid State Relay
-
Package:SIP-4
-
Datasheet:Datasheet 3D Model
-
Description:CRYDOM MCXE240D5 Solid State Relay, MCX Series, SIP, SPST-NO, 5A, PCB, Through Hole, 12VAC, 280VAC
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 15/03/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Solid State SPST-NO (1 Form A) 4-SIP
MCXE240D5 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Case/Package | SIP-4 |
| Current Rating | 5 A |
| Output Voltage | 12V ~ 280V |
| Output Current | 5000 mA |
| Contacts Type | SPST-NO |
| Load Current | 5 A |
| Input Current | 15 mA |
| Isolation Voltage | 4000 v |
| Input Voltage (Max) | 32 V |
| Output Voltage (Max) | 280 V |
| Output Current (Max) | 5 A |
| Input Current (Min) | 15 mA |
| Load Current (Max) | 5 A |
| Load Current (Min) | 0.06 Arms |
| Operating Temperature (Max) | 80 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 280 VAC |
| Operating Voltage (Min) | 12 VAC |
| Operating Voltage (Max) | 280 VAC |
| Input Voltage | 15VDC ~ 32VDC |
| Show | |
| Size-Length | 43.1 mm |
| Size-Width | 10.2 mm |
| Size-Height | 25.4 mm |
| Operating Temperature | -40℃ ~ 80℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
