MEE1S0305SC Murata Manufacturing Co., Ltd. - DC/DC Converters

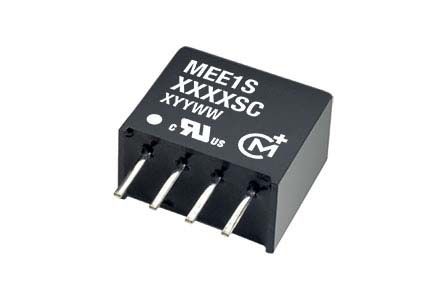

Image is for your reference only,please check specifications for details

MEE1S0305SC - Murata Manufacturing Co., Ltd.
Manufacturer:
Murata Manufacturing Co., Ltd.
ManyChip's Part#:
MC17155200
Category:
DC/DC Converters
Package:
SIP-4
Datasheet:
Datasheet 3D Model
Description:
MURATA POWER SOLUTIONS MEE1S0305SC – Изолированный конвертер постоянного тока для монтажа на плату, SIP-модель, фиксированная конфигурация, через отверстия в плате, 1 Вт, 5 В, 200 мА.
Stock Locations:
Availability:
4 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 196.03

Updated at 30/10/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

MEE1S0305SC – это изолированный конвертер постоянного тока с одним выходом, имеющий стандартную архитектуру пинов и возможность монтажа на плату. Конвертер серии MEE1 с мощностью 1 Вт обладает высокой эффективностью и обеспечивает лучшее регулирование напряжения в случаях, когда не допускается значительное изменение выходного напряжения. Эти конвертеры идеально подходят для использования в системах управления с целью обеспечения локальных источников питания, а также для предотвращения возникновения шума при переключении выключателей.
Работает при нулевом нагрузке.
Изоляция от 1 кВ постоянного тока.
Эффективность до 87% в среднем.
Плотность мощности 1,305 Вт/км³.
Пинеты совместимы с сериями LME, NME, NKE и NML.
Широкий диапазон рабочих температур от -40 до +85°C.

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	SIP-4
Supply Voltage (DC)	3.30 V
Power Rating	1 W
Number of Outputs	1 Output
Input Voltage (DC)	3.30 V
Output Voltage	5 V
Output Current	0.2 A
Output Power	1 W
Isolation Voltage	1 kV
Input Voltage (Max)	3.63 V
Input Voltage (Min)	2.97 V
Input Voltage (DC Max)	3.63 V
Input Voltage (DC Min)	2.97 v
Output Current (Max)	200 mA
Output Power (Max)	1 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	2.97V ~ 3.63V
	Show
Size-Length	11.48 mm
Size-Width	6 mm
Size-Height	10 mm
Weight	1.3 g
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
