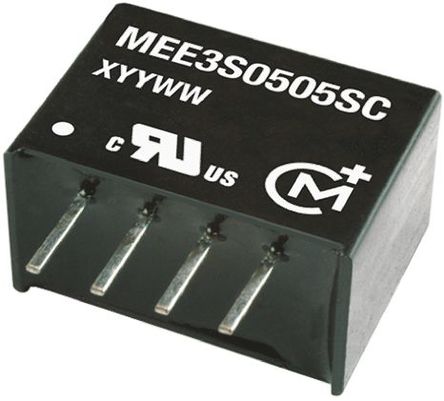

Image is for your reference only,please check specifications for details

MEE3S1205SC - muRata
Manufacturer:
muRata
ManyChip's Part#:
MC71004265
Category:
DC to DC Converter, DC/DC Converter
Package:
SIP-4
Datasheet:
Datasheet 3D Model
Description:
MURATA POWER SOLUTIONS MEE3S1205SC Isolated Board Mount DC-DC Converter, SIP, Fixed, Through Hole, 3W, 5V, 600mA
Stock Locations:
Availability:
273 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 392.69

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MEE3S1205SC is an isolated single-output DC/DC Converter offering 3W capable of operation over the full industrial temperature range of -40 to 85°C³. It is pin compatible power upgrade path from the 1W NME/NKE and 2W NML series and it is ideally suited for providing local supplies on control system boards with the added benefit of 1kVDC galvanic isolation.
No heat-sink required
Industry standard pin-out
Fully encapsulated with toroidal magnetics
No external components required
No electrolytic or tantalum capacitors
6% Maximum load regulation
60mVp-p Maximum ripple and noise
85% Typical efficiency
42pF Isolation capacitance

Show

MEE3S1205SC Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	SIP-4
Supply Voltage (DC)	12.0 V
Power Rating	3 W
Number of Outputs	1 Output
Output Voltage	5 V
Output Current	0.6 A
Output Power	3 W
Isolation Voltage	1 kV
Input Voltage (Max)	13.2 V
Input Voltage (Min)	10.8 V
Input Voltage (DC Max)	13.2 V
Input Voltage (DC Min)	10.8 v
Output Current (Max)	600 mA
Input Power (Max)	3 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	10.8V ~ 13.2V
	Show
Size-Length	14.15 mm
Size-Width	8.15 mm
Size-Height	10.15 mm
Weight	2.3 g
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
