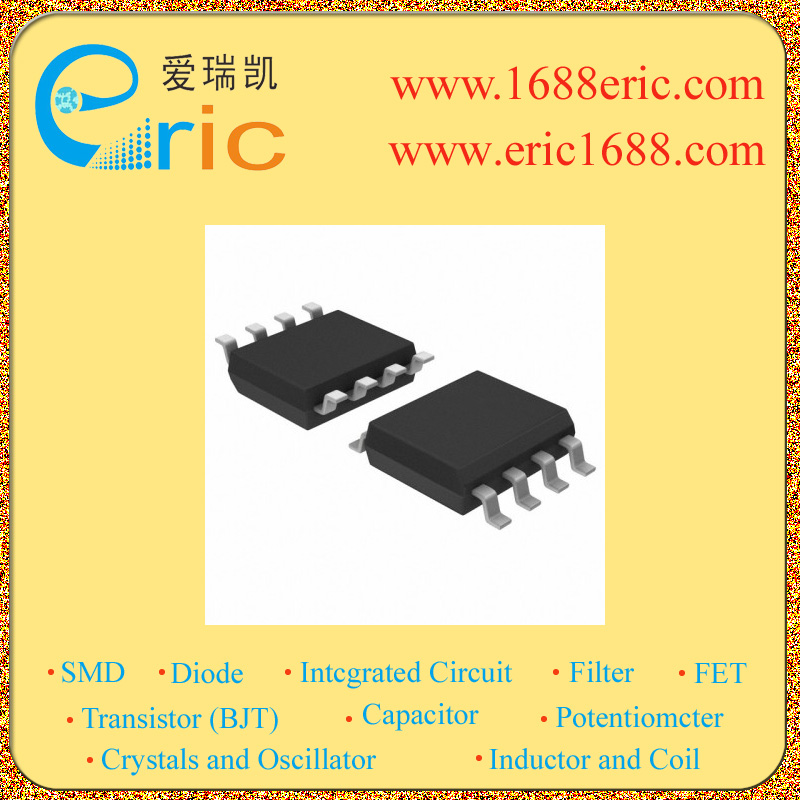

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- General Description
- The MIC2505, MIC2505-1, MIC2505-2, and MIC2506 are single and dual integrated high-side power switches that consist of TTL compatible control/enable inputs, a charge pump, and protected N-channel MOSFETs. The MIC2505/6 family can be used instead of separate high-side drivers and MOSFETs in many low-voltage applications.
- The MIC2505/6 family controls voltages ranging from 2.7V to 7.5V. The MIC2505-series can deliver at least 2A continuous current while the MIC2506 can deliver at least 1A continuous current from each output. A slow turn-on feature prevents high inrush current when switching capacitive loads. The internal control circuitry is powered from the same 2.7V to 7.5V. Within the device’s input range, outputs can be forced higher than the input voltage when disabled.
- Features
- • Low MOSFET on resistance to 2.7V
- 30mΩ typical at 5V (MIC2505-series)
- 35mΩ typical at 3.3V (MIC2505-series)
- 75mΩ typical at 5V (each MIC2506 output)
- 80mΩ typical at 3.3V (each MIC2506 output)
- • 2.7V to 7.5V input
- • 110µA typical on-state supply current
- • 1µA typical off-state supply current
- • Output can be forced higher than input (off-state)
- • Current limit
- • Thermal shutdown
- • 2.5V undervoltage lockout (UVLO)
- • Open-load detection (MIC2505BN/M and MIC2506BN/M only)
- • Open-drain fault flag
- • 5ms (slow) turn-on and fast turnoff
- • Logic-level control/enable input
- Applications
- • USB Power Distribution
- • 3.3V and 5V power management
- • PC Card card inrush limiting switch
- • Hot plug-in power supplies
- • Battery-charger circuits
MIC2506BM Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Supply Voltage (DC) | 5.00 V |
| Number of Outputs | 2 Output |
| Output Voltage | ≤7.50 V |
| Drain to Source Resistance (on) (Rds) | 35.0 mΩ |
| Supply Voltage | 2.7V ~ 7.5V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Obsolete |
| Packaging | Tube, Rail |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
