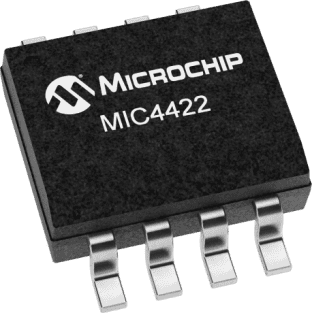

MIC4422YM - Microchip
Manufacturer:
Microchip
ManyChip's Part#:
MC10330631
Category:
FET Driver
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
MICROCHIP MIC4422YM MOSFET Driver 2Outputs, Low Side, 4.5V-18V supply, 9A and 0.8Ω output, SOIC-8
Stock Locations:
Availability:
61 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.05

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MIC4422YM is a 9A peak low-side MOSFET Driver can drive the largest MOSFETs with an improved safe operating margin. The driver accepts any logic input from 2.4V to VS without external speed-up capacitors or resistor networks. Proprietary circuits allow the input to swing negative by as much as 5V without damaging the part. Additional circuits protect against damage from electrostatic discharge.
BiCMOS/DMOS construction
Latch-up proof - fully isolated process is inherently immune to any latch-up
Matched rise and fall times 25ns

Show

MIC4422YM Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Rise/Fall Time	20ns, 24ns
Number of Outputs	1 Output
Output Current	9 A
Number of Positions	8 Position
Power Dissipation	1.04 W
Rise Time	75 ns
Fall Time	75 ns
Fall Time (Max)	75 ns
Fall Time (Max)	75 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1040 mW
Supply Voltage	4.5V ~ 18V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	4.5 V
	Show
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
