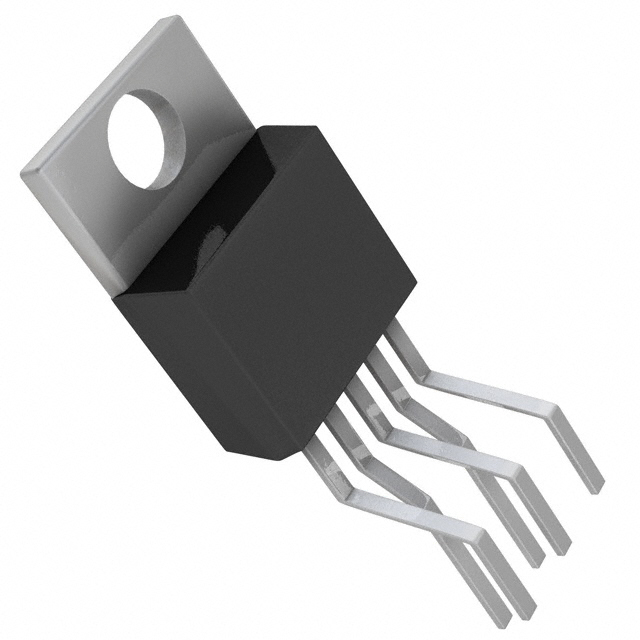

BTS244Z Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	5 Pin
Case/Package	TO-220-5
Voltage Rating (DC)	55.0 V
Current Rating	35.0 A
Input Capacitance	2.66 nF
Gate Charge	130 nC
Drain to Source Voltage (Vds)	55 V
Continuous Drain Current (Ids)	35.0 A
Rise Time	70 ns
Input Capacitance (Ciss)	2660pF @25V(Vds)
Input Power (Max)	170 W
Fall Time	25 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	170000 mW
	Show
Product Lifecycle Status	Obsolete
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
