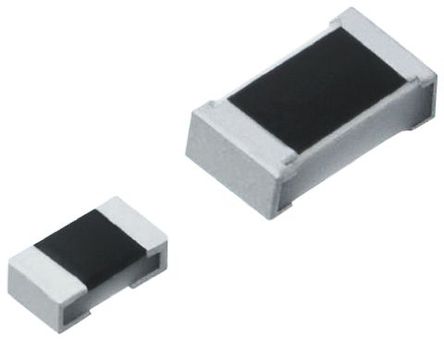

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The EZAEG2A50AX is an ESD Suppressor Diode for high-speed differential data line such as antenna circuit, HDMI, SATA, USB and DisplayPort. It has good ESD suppression characteristics.
- 0.04pF Capacitance
- Good ESD withstanding
EZAEG2A50AX Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package (SI) | 1005 |
| Case/Package | 0402 |
| Voltage Rating (DC) | 15.0 V |
| Voltage Rating (AC) | 15.0 V |
| Operating Voltage | 30 V |
| Capacitance | 0.1 pF |
| Breakdown Voltage | 15.0 V |
| Number of Positions | 2 Position |
| Clamping Voltage | 100 V |
| Test Current | 2 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Show | |
| Size-Length | 1.00 mm |
| Size-Width | 0.5 mm |
| Size-Height | 0.38 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Cut Tape (CT) |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
