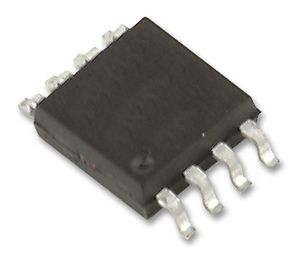

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The MIC47100YMME TR is a high speed Low VIN LDO capable of delivering up to 1A and designed to take advantage of point of load applications that use multiple supply rails to generate a low voltage, high current power supply. The MIC47100 is stable with only a 1µF ceramic output capacitor and making it an optimal solution for board-constrained applications. The MIC47100 has an NMOS output stage offering very low output impedance. The NMOS output stage offers a unique ability to respond very quickly to sudden load changes such as that required by a microprocessor, DSP or FPGA. The MIC47100 consumes little quiescent current and therefore can be used for driving the core voltages of mobile processors, post regulating a core DC/DC converter in any portable device.
- High bandwidth - Very fast transient response
- Logic level enable input
- UVLO on both supply voltages for easy turn-ON
- Stable with a 1µF ceramic output capacitor
- ±1.5% Initial output voltage accuracy
- ±2% Overtemperature output voltage accuracy
MIC47100YMME Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | MSOP-8 |
| Number of Outputs | 1 Output |
| Output Voltage | 0.8V ~ 2V |
| Output Current | 1 A |
| Number of Positions | 8 Position |
| voltage rating | 0.08V @1A,0.0085V @100mA,0.037V @500mA |
| Input Voltage (Max) | 3.6 V |
| Input Voltage (Min) | 1 V |
| Output Voltage (Max) | 2 V |
| Output Voltage (Min) | 0.8 V |
| Output Current (Max) | 1 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±1.5 % |
| Input Voltage | 1V ~ 3.6V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
