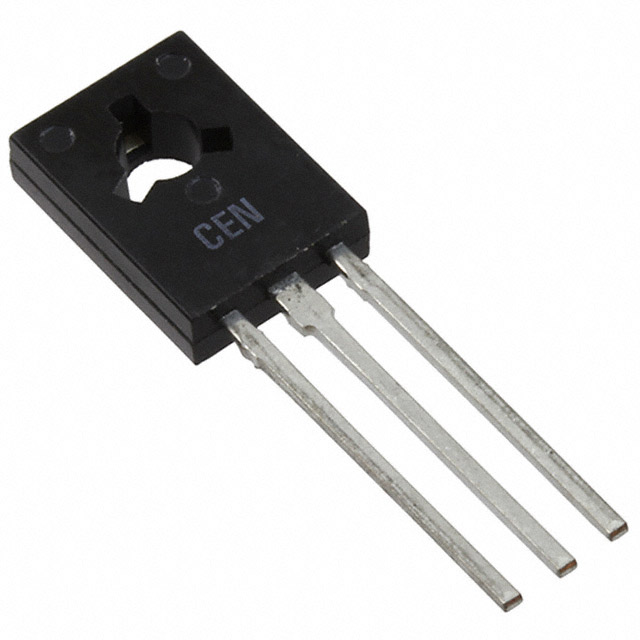

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- MJE170, MJE171, MJE172 (PNP), MJE180, MJE181, MJE182 (NPN)
- 3 AMPERES POWER TRANSISTORS COMPLEMENTARY SILICON 40 − 60 − 80 VOLTS 12.5 WATTS
- The MJE170/180 series is designed for low power audio amplifier and low current, high speed switching applications.
- Features
- •Collector−Emitter Sustaining Voltage −
- VCEO(sus) = 40 Vdc − MJE170, MJE180
- = 60 Vdc − MJE171, MJE181
- = 80 Vdc − MJE172, MJE182
- •DC Current Gain −
- hFE = 30 (Min) @ IC= 0.5 Adc
- = 12 (Min) @ IC= 1.5 Adc
- •Current−Gain − Bandwidth Product − fT = 50 MHz (Min) @ IC= 100 mAdc
- •Annular Construction for Low Leakages − ICBO = 100 nA (Max) @ Rated VCB
- •Epoxy Meets UL 94 V−0 @ 0.125 in
- •ESD Ratings: Machine Model, C Human Body Model, 3B
- •Pb−Free Packages are Available
MJE180 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-225 |
| Voltage Rating (DC) | 40.0 V |
| Current Rating | 3.00 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Power Dissipation (Max) | 12500 mW |
| Show | |
| Material | Silicon |
| Product Lifecycle Status | Unknown |
| Packaging | Bulk |
| RoHS | Non-Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
