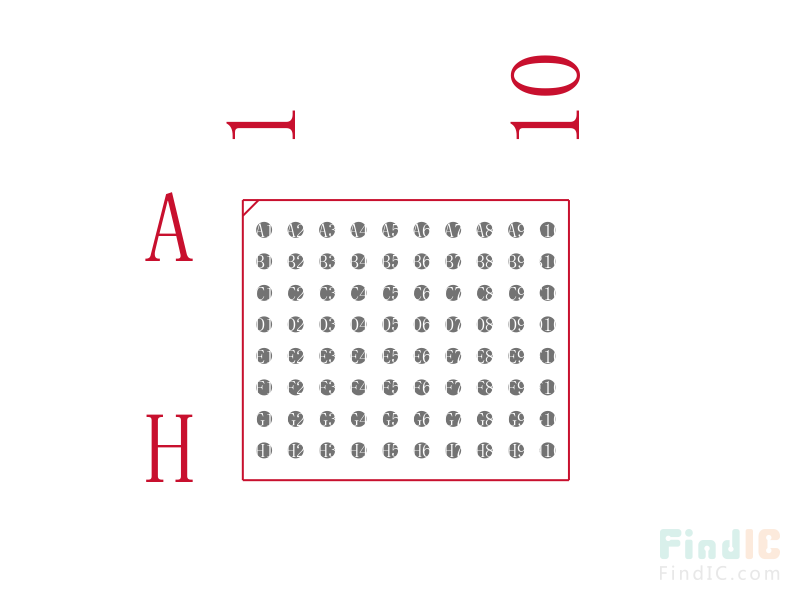

Image is for your reference only,please check specifications for details

MK22FN512CBP12R - NXP
Manufacturer:
NXP
ManyChip's Part#:
MC153290693
Category:
Microcontroller, MCU IC
Package:
WLCSP-80
Datasheet:
Datasheet 3D Model
Description:
Микроконтроллер 32-бит K22F, ядро ARM Cortex M4, RISC, 512КБ флеш, 1.8В/2.5В/3.3В, 80-Pin WLCSP, лента и катушка
Stock Locations:
Availability:
296 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 12.26

Updated at 16/08/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Overview
Kinetis® K22 MCUs have been optimized for cost-sensitive applications requiring low power flexibility and processing efficiency.
* Delivers industry-leading low power while providing significant bill-of-materials savings through smart on-chip integration
* Includes options that support crystal-less USB design for reduced system cost and board space
* Provides scalability with various levels of integration, offering a rich suite of analog, communication, timing and control peripherals to accommodate a wide range of requirements
* Shares the comprehensive enablement and scalability of the Kinetis portfolio
MoreLess
## Features
### Ultra-Low-Power
* 10 low-power modes with power and clock gating for optimal peripheral activity and recovery times. Stop currents of <500 nA, run currents of <200 µA/MHz, 4 µs wake-up from Stop mode
* Full memory and analog operation down to 1.71 volts for extended battery life
* Low-leakage wake-up unit with up to eight internal modules and 16 pins as wake-up sources in low-leakage stop (LLS)/very low-leakage stop (VLLS) modes
* Low-power timer for continual system operation in reduced power state
### Flash, SRAM and FlexMemory
* 128 KB-1 MB flash. Fast access, high reliability with four-level security protection
* 48-128 KB of SRAM
* FlexMemory: 32 bytes-16 KB of user-segmentable byte write/erase EEPROM for data tables/system data. EEPROM with over 10M cycles and flash with 70 µsec write time (brownouts without data loss/corruption). No user or system intervention to complete programming and erase functions and full operation down to 1.71 volts. In addition, 128 KB of FlexNVM for extra program code, data or EEPROM backup
### Mixed-Signal capability
* Up to two high-speed, 16-bit analog-to-digital converters (ADCs) with configurable resolution. Single or differential output mode operation for improved noise rejection. 500 ns conversion time achievable with programmable delay block triggering
* Up to two 12-bit digital-to-analog converters (DACs) for analog waveform generation for audio applications
* Up to three high-speed comparators providing fast and accurate motor over-current protection by driving PWMs to a safe state
* Analog voltage reference provides an accurate reference to analog blocks, ADC and DAC, and replaces external voltage references to reduce system cost
### Performance
* Arm® Cortex®-M4 core + DSP. 120 MHz, single-cycle MAC, single instruction multiple data (SIMD) extensions, single precision floating point unit
* Up to 16-channel DMA for peripheral and memory servicing with reduced CPU loading and faster system throughput
* Cross bar switch enables concurrent multi-master bus accesses, increasing bus bandwidth
* Independent flash banks allow concurrent code execution and firmware updating with no performance degradation or complex coding routines
### Timing and Control
* Up to four FlexTimers with a total of 20 channels. Hardware dead-time insertion and quadrature decoding for motor control
* Carrier modulator timer for infrared waveform generation in remote control applications
* Four-channel 32-bit periodic interrupt timer provides time base for RTOS task scheduler or trigger source for ADC conversion and programmable delay block
### Human-Machine Interface (HMI)
* Up to 16 controllable GPIO with pin interrupt support
### Connectivity and Communications
* USB 2.0 On-The-Go (full-speed). Device charge detect optimizes charging current/time for portable USB devices enabling longer battery life. Low-voltage regulator supplies up to 120 mA off chip at 3.3 volts to power external components from 5 volts input
* Up to six UARTs with IrDA support including one UART with ISO7816 smart card support. Variety of data size, format and transmission/reception settings supported for multiple industrial communication protocols
* Inter-IC Sound (I2S) serial interface for audio system interfacing
* CAN module for industrial network bridging
* Up to three DSPI and two I2C
### Reliability, Safety and Security
* Memory protection unit provides memory protection for all masters on the cross bar switch, increasing software reliability
* Cyclic redundancy check engine validates memory contents and communication data, increasing system reliability
* Independent-clocked COP guards against clock skew or code runaway for fail-safe applications such as the IEC 60730 safety standard for household appliances
* External watchdog monitor drives output pin to safe state external components if watchdog event occursComparison Table
### Kinetis K22_120 MCU Family Recommended Solutions
**Part Number** | **Hardware Development Tool**
\---|---
MK22FN128CAH12R
MK22FN512CBP12, MK22FN256CAH12 MK22FN512CAP12, MK22FN256CAP12 MK22FN512VDC12, MK22FN256VDC12 MK22FN512VLH12, MK22FN256VLH12 MK22FN512VLL12, MK22FN256VLL12 MK22FN512VMP12, MK22FN256VMP12 | TWR-K22F120M FRDM-K22F
MK22FN1M0AVLH12, MK22FN1M0AVLK12 MK22FN1M0AVLL12, MK22FN1M0AVLQ12 MK22FN1M0AVMC12, MK22FN1M0AVMD12 MK22FX512AVLH12, MK22FX512AVLK12 MK22FX512AVLL12, MK22FX512AVLQ12 MK22FX512AVMC12, MK22FX512AVMD12 | TWR-K21F120MA

Show

MK22FN512CBP12R Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	80 Pin
Case/Package	WLCSP-80
RAM Memory Size	128 KB
Number of ADCs	2 ADC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Number of DACs	2 DAC
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
