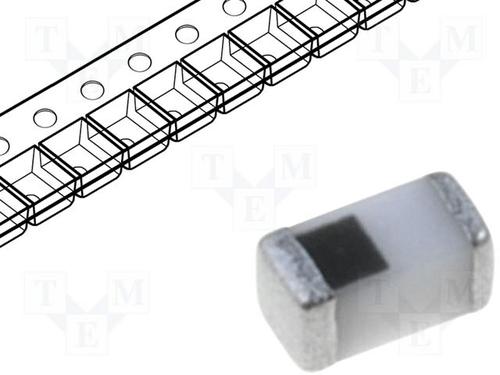

Image is for your reference only,please check specifications for details

MLG1608B33NJ - TDK
Manufacturer:
TDK
ManyChip's Part#:
MC15993800
Category:
Inductor
Package:
0603
Datasheet:
Datasheet 3D Model
Description:
Inductor High Frequency Chip Unshielded Multi-Layer 33nH 5% 100MHz 12Q-Factor Ceramic 500mA 500mOhm DCR 0603 T/R
Stock Locations:
Availability:
3,717 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.33

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Inductor High Frequency Chip Unshielded Multi-Layer 33nH 5% 100MHz 12Q-Factor Ceramic 500mA 500mOhm DCR 0603 T/R

Show

MLG1608B33NJ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	1608
Case/Package	0603
Inductance	33 nH
Self Resonant Frequency	2.3 GHz
Q-Factor	12.0
Resistance	250 mΩ
Resonant Frequency	2.30 GHz
Shielding	No
Inductance Tolerance	±5 %
DC Resistance (DCR)	≤500.0 mΩ
Current Rating (DC)	500 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	55 ℃
Resistance (DC Max)	0.5 Ω
	Show
Size-Length	1.6 mm
Size-Width	0.8 mm
Size-Height	0.8 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Obsolete
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8504508000
ECCN Code	EAR99
