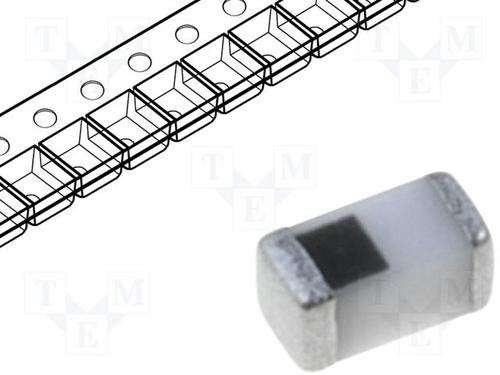

Image is for your reference only,please check specifications for details
- MLG1608B3N9S - TDK
-
Manufacturer:TDK
-
ManyChip's Part#:MC15962355
-
Category:Inductor
-
Package:0603
-
Datasheet:Datasheet 3D Model
-
Description:Inductor High Frequency Chip Unshielded Multi-Layer 3.9nH 0.3nH 100MHz 10Q-Factor Ceramic 600mA 140mOhm DCR 0603 T/R
-
Stock Locations:
-
Availability:1,559 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.26
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Inductor High Frequency Chip Unshielded Multi-Layer 3.9nH 0.3nH 100MHz 10Q-Factor Ceramic 600mA 140mOhm DCR 0603 T/R
MLG1608B3N9S Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package (SI) | 1608 |
| Case/Package | 0603 |
| Inductance | 3.9 nH |
| Self Resonant Frequency | 6000 MHz |
| Q-Factor | 10.0 |
| Resistance | 60.0 mΩ |
| Resonant Frequency | 7.90 GHz |
| Shielding | No |
| Inductance Tolerance | ±0.3 nH |
| Test Frequency | 100 MHz |
| DC Resistance (DCR) | ≤140.0 mΩ |
| Current Rating (DC) | 600 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Resistance (DC Max) | 0.14 Ω |
| Show | |
| Size-Length | 1.6 mm |
| Size-Width | 0.8 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| HTS Code | 8504508000 |
| ECCN Code | EAR99 |
