Description

The MMSZxxxT1G series surface mount Voltage Regulator Zener Diode designed for optimal automated board assembly. This device provides a convenient alternative to the leadless 34-package style. It comes with void free transfer-moulded thermosetting plastic case.
500mW Rating on FR-4 or FR-5 board
2.4 to 56V Wide Zener reverse voltage rating
Small package size for high density applications
ESD rating of Class 3 (>16kV) per human body model
AEC-Q101 qualified and PPAP capable

Show

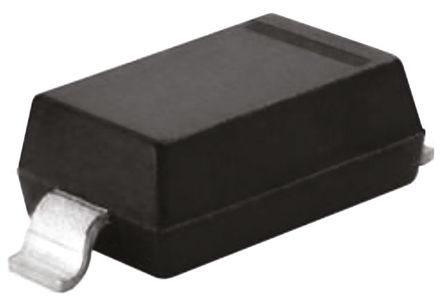

MMSZ30T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-123-2
Voltage Rating (DC)	30.0 V
Capacitance Tolerance	±5 %
Power Rating	500 mW
Breakdown Voltage	31.5 V
Number of Positions	2 Position
Forward Voltage	900mV @10mA
Power Dissipation	500 mW
Test Current	2 mA
Zener Voltage	30 V
Maximum Forward Voltage (Max)	900mV @10mA
Input Power (Max)	500 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	500 mW
	Show
Size-Length	2.69 mm
Size-Width	1.6 mm
Size-Height	1.25 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
