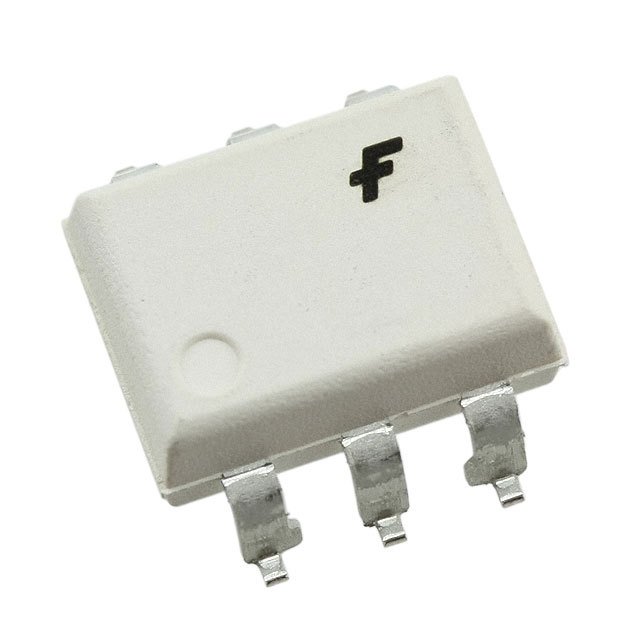

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The MOC303XM and MOC304XM devices consist of a AlGaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral triac driver.They are designed for use with a triac in the interface of logic systems to equipment powered from 115VAClines such as teletypewriters, CTRs, solid-state relays, industrial controls, printers, motors, solenoids and consumer appliances, etc.
- Features
- ---
- |
- Simplifies Logic Control of 115 VAC power
- Zero Voltage Crossing
- dv/dt of 2000 V/µs Typical, 1000 V/µs Guaranteed
- Peak Blocking Voltage
- – 250 V, MOC303XM
- – 400 V, MOC304XM
- Safety and Regulatory Approvals
- – UL1577, 4,170 VACRMS for 1 Minute
- – DIN EN/IEC60747-5-5
MOC3041SR2M Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | PDIP-6 |
| Number of Channels | 1 Channel |
| Forward Voltage | 1.25 V |
| Power Dissipation | 250 mW |
| Isolation Voltage | 4170 Vrms |
| Holding Current | 400 µA |
| Forward Current | 60 mA |
| Output Voltage (Max) | 280 VAC |
| Maximum Forward Voltage (Max) | 1.5 V |
| Forward Current (Max) | 60 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 250 mW |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
