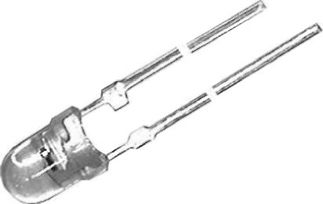

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The BPW85B is a clear Silicon NPN Phototransistor with high radiant sensitivity. It is sensitive to visible and near infrared radiation and suitable for visible and near infrared radiation.
- High photo sensitivity
- High radiant sensitivity
- ±25° Angle of half sensitivity
BPW85B Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | T-1 |
| Current Rating | 50.0 mA |
| Rise/Fall Time | 2.3 ns |
| Number of Channels | 1 Channel |
| Number of Positions | 2 Position |
| Wavelength | 850 nm |
| Viewing Angle | 25° |
| Peak Wavelength | 850 nm |
| Polarity | NPN |
| Power Dissipation | 0.1 W |
| Power Consumption | 100 mW |
| Rise Time | 2 µs |
| Breakdown Voltage (Collector to Emitter) | 70.0 V |
| Fall Time | 2.3 µs |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 100 mW |
| Show | |
| Size-Length | 3.4 mm |
| Size-Width | 3.4 mm |
| Size-Height | 4.5 mm |
| Material | Silicon |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
