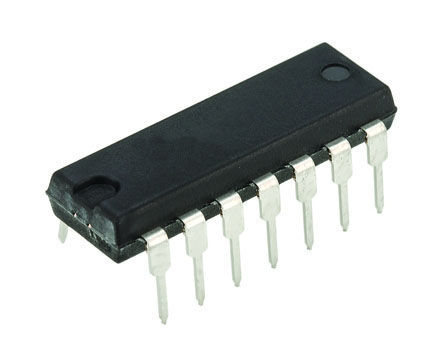

MSP430F2013IN - TI
Manufacturer:
TI
ManyChip's Part#:
MC14799744
Category:
Microcontroller, MCU IC
Package:
DIP-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS MSP430F2013IN 16Bit Microcontroller, Mixed Signal, MSP430F2xx, 16MHz, 2KB, 128Byte, 14Pins, DIP
Stock Locations:
Availability:
468 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.97

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Texas Instruments MSP430 family of ultra-low-power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 1 µs.
The MSP430F20xx series is an ultra-low-power mixed signal microcontroller with a built-in 16-bit timer and ten I/O pins. In addition, the MSP430F20x1 has a versatile analog comparator. The MSP430F20x2 and MSP430F20x3 have built-in communication capability using synchronous protocols (SPI or I2C) and a 10-bit A/D converter (MSP430F20x2) or a 16-bit sigma-delta A/D converter (MSP430F20x3).
Typical applications include sensor systems that capture analog signals, convert them to digital values, and then process the data for display or for transmission to a host system. Stand alone RF sensor front end is another area of application.

Show

MSP430F2013IN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	DIP-14
Frequency	16.0 MHz
Supply Voltage (DC)	3.30 V, 3.60 V (max)
Number of Positions	14 Position
Clock Speed	16.0 MHz
RAM Memory Size	128 b
Number of Bits	16 Bit
FLASH Memory Size	2 KB
Number of I/O Pins	10 IO
Access Time	16.0 µs
Core Architecture	RISC
Number of ADCs	1 ADC
FRAM Memory Size	0 B
Number of Inputs and Outputs	10 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.8V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.8 V
	Show
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
