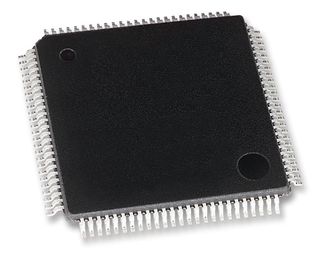

Image is for your reference only,please check specifications for details

MSP430FG4617IPZ - TI
Manufacturer:
TI
ManyChip's Part#:
MC13517100
Category:
Microcontroller, MCU IC
Package:
LQFP-100
Datasheet:
Datasheet 3D Model
Description:
16Bit Ultra-Low-Power MCU, 92KB Flash, 8KB RAM, 12Bit ADC, Dual DAC, DMA, 3 OPAMP, 160 Seg LCD 100-LQFP -40℃ to 85℃
Stock Locations:
Availability:
298 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 25.65

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TI MSP430 family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows the device to wake up from low-power modes to active mode in less than 6 µs.
The MSP430xG461x series are microcontroller configurations with two 16-bit timers, a high-performance 12-bit ADC, dual 12-bit DACs, three configurable operational amplifiers, one universal serial communication interface (USCI), one universal synchronous/asynchronous communication interface (USART), DMA, 80 I/O pins, and a segment liquid crystal display (LCD) driver with regulated charge pump.

Show

MSP430FG4617IPZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	100 Pin
Case/Package	LQFP-100
Frequency	8.00 MHz
Supply Voltage (DC)	3.30 V, 3.60 V (max)
Number of Positions	100 Position
Clock Speed	8.00 MHz
RAM Memory Size	8 KB
Number of Bits	16 Bit
FLASH Memory Size	92 KB
Number of I/O Pins	80 IO
Access Time	8.00 µs
Core Architecture	RISC
Memory Size	92000 B
Number of UARTs	1 UART
Number of ADCs	12 ADC
FRAM Memory Size	0 B
Number of Inputs and Outputs	80 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.8V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.8 V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
