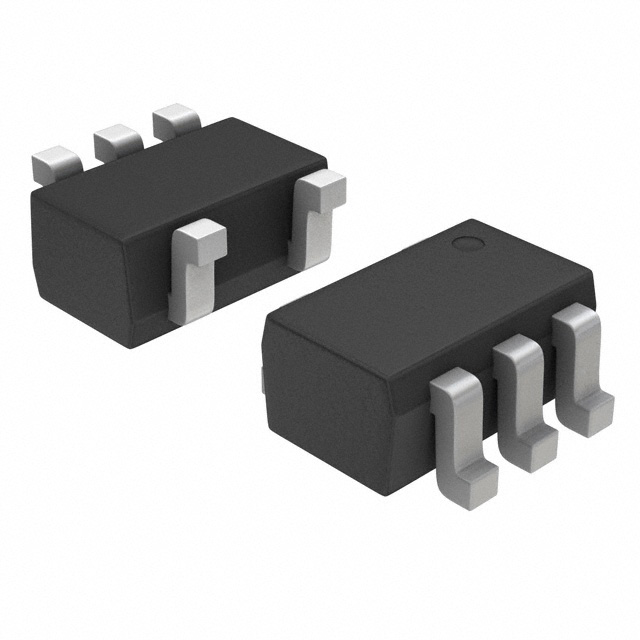

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Features • SC−88A Package Allows Four Separate Unidirectional Configurations • Low Leakage < 1 uA @ 3 V • Breakdown Voltage: 6.1 V − 7.2 V @ 1 mA • Low Capacitance (90 pF typical) • ESD Protection Meeting IEC1000−4−2 • Pb−Free Package is Available
MSQA6V1W5T2 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | SC-70-5 |
| Voltage Rating (DC) | 6.60 V |
| Power Rating | 150 W |
| Breakdown Voltage | 6.60 V |
| Peak Pulse Power | 150 W |
| Min Breakdown Voltage | 6.1 V |
| Show | |
| Size-Length | 2.20 mm |
| Size-Width | 1.35 mm |
| Size-Height | 1.10 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Obsolete |
| Packaging | Cut Tape (CT) |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
