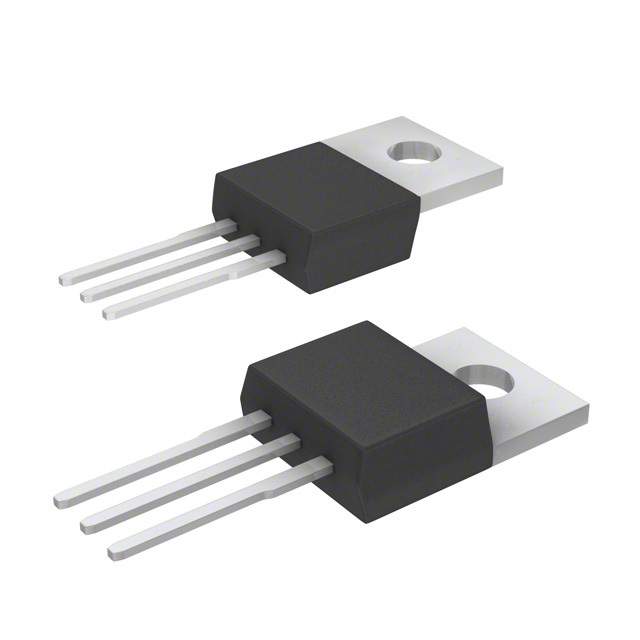

Image is for your reference only,please check specifications for details
Updated at 24/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- P-Channel 60V 23A (Tc) 90W (Tc) Through Hole TO-220AB
MTP23P06V Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Voltage Rating (DC) | -60.0 V |
| Current Rating | -23.0 A |
| Drain to Source Resistance (on) (Rds) | 120 mΩ |
| Polarity | P-Channel |
| Power Dissipation | 90 W |
| Drain to Source Voltage (Vds) | 60 V |
| Breakdown Voltage (Drain to Source) | 60.0 V |
| Breakdown Voltage (Gate to Source) | ±15.0 V |
| Continuous Drain Current (Ids) | 23.0 A |
| Rise Time | 98.3 ns |
| Input Capacitance (Ciss) | 1620pF @25V(Vds) |
| Input Power (Max) | 90 W |
| Fall Time | 62 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 90W (Tc) |
| Show | |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
