Description

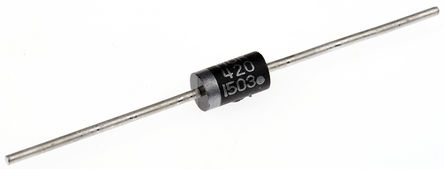

The MUR420RLG is a SWITCHMODE™ ultra-fast axial-lead Power Rectifier with moulded epoxy case. This state-of-the-art device is designed for use in switching power supplies, inverters and as free-wheeling diodes.
Cathode indicated by polarity band
All external surfaces corrosion-resistant and terminal leads are readily solderable
Low forward voltage
Low leakage current
High temperature glass-passivated junction

Show

MUR420RLG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-201AD
Voltage Rating (DC)	200 V
Current Rating	4.00 A
Halogen Free Status	Halogen Free
Output Current	≤4.00 A
Load Current	3 A
Forward Voltage	890mV @4A
Polarity	Standard
Thermal Resistance	55 ℃/W
Reverse recovery time	35 ns
Forward Current	4 A
Max Forward Surge Current (Ifsm)	125 A
Maximum Forward Voltage (Max)	890 mV
Forward Current (Max)	4 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature (Max)	175 ℃
	Show
Size-Length	9.5 mm
Size-Width	5.3 mm
Size-Height	5.3 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99
