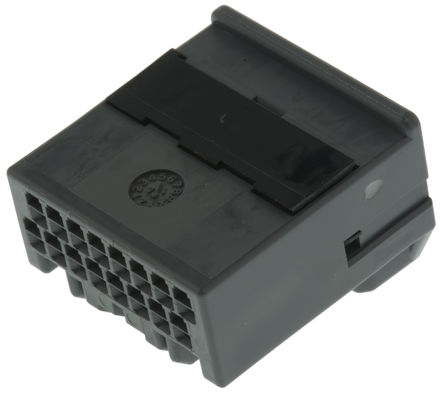

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- MX34 Socket Housing 2 Row
- For MX34 contacts see typical stock number 690-9893
- For MX34 headers see typical stock numbers: 690-8935 (Straight) or 690-8900 (90°)
MX34016SF1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Case/Package | - |
| Number of Contacts | 16 Contact |
| Gender | Female |
| Contact Plating | Tin |
| Current Rating | 3 A |
| Insulation Resistance | 100 MΩ |
| Number of Rows | 2 Row |
| Number of Positions | 16 Position |
| Current Rating (Max) | 3 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 20.7 mm |
| Size-Width | 20.7 mm |
| Size-Height | 14 mm |
| Color | Gray |
| Contact Material | Copper Alloy |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
