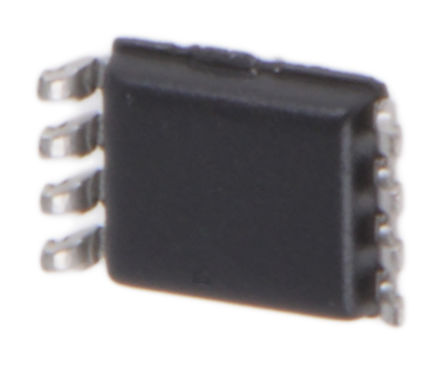

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NC7WZ132K8X is a dual two-input NAND Gate from ultra-high speed Series of TinyLogic®. The device is fabricated with advanced CMOS technology to achieve ultra-high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range. The device is specified to operate over the 1.65 to 5.5V VCC operating range. The inputs and output are high impedance when VCC is 0V. Inputs tolerate voltages up to 7V independent of VCC operating voltage. Schmitt-trigger inputs achieve typically 1V hysteresis between the positive-going and negative-going input threshold voltage at 5V VCC.
3.1ns Propagation delay (tPD)
±24mA High output drive at 3V
Matches the performance of LCX when operated at 3.3V VCC
Power down high impedance Inputs/Outputs
Overvoltage tolerant inputs facilitate 5V to 3V translation
Patented noise/EMI reduction circuitry implemented
Schmitt trigger inputs are tolerant of slow changing input signals

Show

NC7WZ132K8X Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	US-8
Supply Voltage (DC)	1.80 V
Number of Outputs	1 Output
Output Current	32 mA
Number of Circuits	2 Circuit
Number of Positions	8 Position
Number of Gates	2 Gate
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.65V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.65 V
	Show
Size-Length	2.3 mm
Size-Width	2 mm
Size-Height	0.7 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
