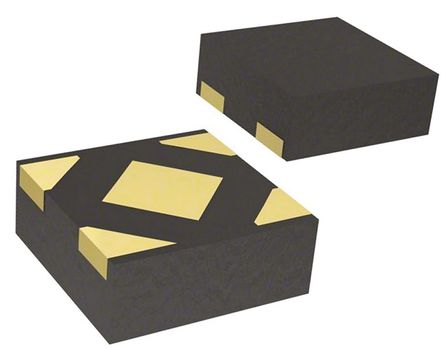

Image is for your reference only,please check specifications for details

NCP103AMX330TCG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC9385389
Category:
Voltage Regulator
Package:
UDFN-4
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCP103AMX330TCG Fixed LDO Voltage Regulator, 1.7V to 5.5V, 65mV Dropout, 3.3Vout, 150mAout, DFN-4
Stock Locations:
Availability:
2,393 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.54

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCP103AMX330TCG is a 3.3V fixed output low-dropout (LDO) Linear Regulator provides the engineer with a very stable, accurate voltage with low noise suitable for space constrained, noise sensitive applications. In order to optimize performance for battery operated portable applications, the device employs the dynamic quiescent current adjustment for very low IQ consumption at no-load.
50µA Very low quiescent current (typical)
0.1µA Standby current consumption (typical)
±1% Accuracy at room temperature
75dB at 1kHz High power supply ripple rejection
Thermal shutdown and current limit protections
Stable with a 1µF ceramic output capacitor

Show

NCP103AMX330TCG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	UDFN-4
Number of Outputs	1 Output
Output Voltage	3.3 V
Output Current	150 mA
Number of Positions	4 Position
Quiescent Current	95 µA
voltage rating	65 mV
Input Voltage (Max)	5.5 V
Input Voltage (Min)	1.7 V
Output Current (Max)	0.15 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Input Voltage	≤5.5 V
	Show
Size-Length	1 mm
Size-Width	1 mm
Size-Height	0.55 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
