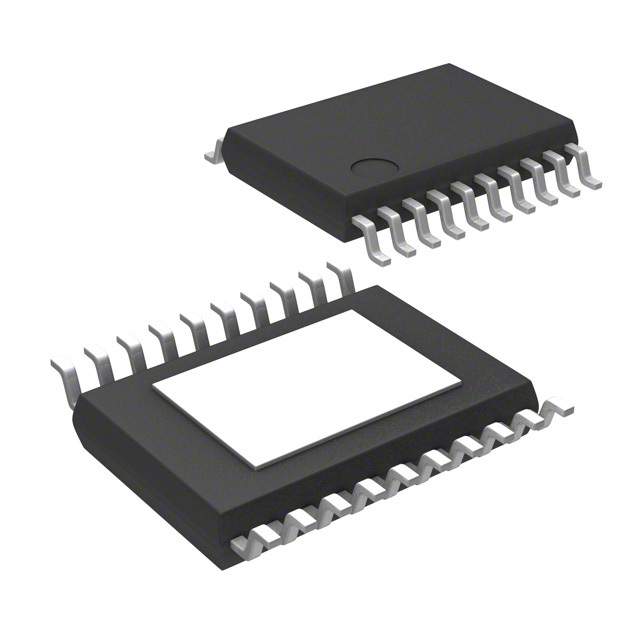

- NCP1081DER2G - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC5279593
-
Category:Battery Management IC
-
Package:TSSOP-20
-
Datasheet:Datasheet 3D Model
-
Description:Power Over Ethernet PD Controller 0V 57V 40W 20Pin TSSOP EP
-
Stock Locations:
-
Availability:224 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.81
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The NCP1081DER2G is an integrated high power PoE-PD Interface and DC to DC Converter Controller offers new opportunities for the design of products powered directly over Ethernet lines, eliminating the need for local power adaptors or power supplies and drastically reducing the overall installation and maintenance cost. ON Semiconductor"s unique manufacturing process and design enhancements allow the NCP1081 to deliver up to 25.5W for the draft IEEE802.3at (D3.0) standard and up to 40W for proprietary high power PoE applications. It enables the draft IEEE802.3at (D3.0) and implements a two event physical layer classification. Additional proprietary classification procedures support high power sourcing equipment (PSE) on the market. The unique high power features leverage the significant cost advantages of PoE-enabled systems to a much broader spectrum of products in emerging markets.
- High power Layer 1 classification indicator
- Extended power ranges up to 40W
- Programmable classification current
- Adjustable under voltage lock out
- Programmable inrush current limit
- Programmable operational current limit up to 1100mA for extended power ranges
- Over-temperature protection
- Internal voltage regulators
- Wide duty cycle range with internal slope compensation circuitry
- Programmable oscillator frequency
- Programmable soft-start time
NCP1081DER2G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | TSSOP-20 |
| Frequency | 500 kHz |
| Halogen Free Status | Halogen Free |
| Input Voltage (DC) | 57.0 V |
| Output Voltage | 9 V |
| Supply Current | 1100 mA |
| Number of Channels | 1 Channel |
| Number of Positions | 20 Position |
| Rise Time | 50 ns |
| Switching Frequency | 100kHz, 500kHz |
| Topology | Flyback |
| Duty Cycle | 80 % |
| Input Voltage (Max) | 57 V |
| Input Voltage (Min) | 0 V |
| Input Power (Max) | 40 W |
| Input Power (Max) | 40 W |
| Maximum Duty Cycle | 80 % |
| Fall Time | 50 ns |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 40 W |
| Supply Voltage | 0V ~ 57V |
| Input Voltage | 57 V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
