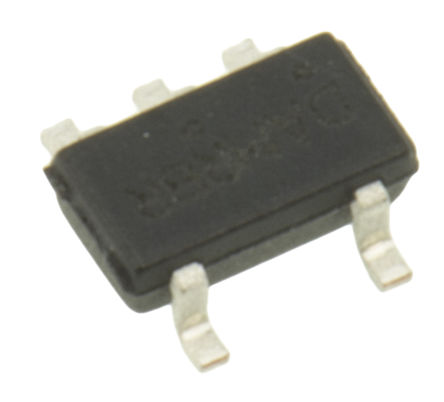

NCP1406SNT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC13181740
Category:
DC to DC Converter
Package:
TSOT-23-5
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 1.4V to 5.5V Step Up Single-Out 25V 0.025A 5Pin TSOP T/R
Stock Locations:
Availability:
2,750 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.37

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

25 V/25 mA PFM Step−Up DC−DC Converter • 85% Efficiency at VOUT = 25 V, IOUT = 25 mA, VIN = 5.0 V • Low Operating Current of 15 A (Not Switching) • Low Shutdown Current of 0.3 A • Low Startup Voltage of 1.8 V Typical at 0 mA • Output Voltage up to 25 V with Built−in 26 V MOSFET Switch • PFM Switching Frequency up to 1.0 MHz • Chip Enable • Output Voltage Soft−Start • Feedback Pin Open/Short Circuit Protection • Input Undervoltage Lockout • Thermal Shutdown •Low Profile L and Minimum External Parts • Micro Miniature TSOP−5 Package • Pb−Free Package is Available • OLCD Bias • White LED Driver • LED Driver • Personal Digital Assistants (PDA) • Digital Still Camera • Cellular Telephone • Hand−Held Games • Hand−Held Instrument

Show

NCP1406SNT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TSOT-23-5
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	25 V
Output Current	25 mA
Number of Positions	5 Position
Switching Frequency	1 MHz
Topology	Step-Up
Input Voltage (Max)	5.5 V
Input Voltage (Min)	1.4 V
Output Voltage (Max)	25 V
Output Voltage (Min)	1.19 V
Output Current (Max)	0.025 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	1.4V ~ 5.5V
	Show
Size-Length	3 mm
Size-Width	1.5 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
