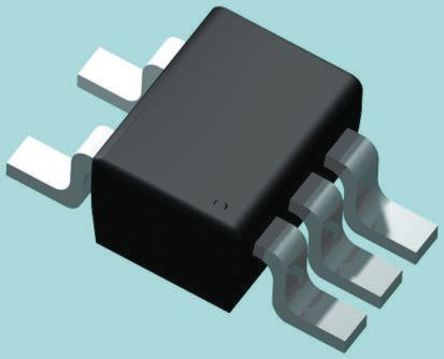

Image is for your reference only,please check specifications for details

NCP1521BSNT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC4483626
Category:
DC to DC Converter
Package:
TSOT-23-5
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 2.7V to 5.5V Step Down Single-Out 0.9V to 3.9V 0.6A 5Pin TSOP T/R
Stock Locations:
Availability:
9,000 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.6

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCP1521BSNT1G is a monolithic integrated circuit optimized Step-Down DC-DC Converter uses synchronous rectification to increase efficiency and reduce external part count. The device also has a built-in 1.5MHz (nominal) oscillator which reduces component size by allowing smaller inductors and capacitors. Automatic switching PWM/PFM mode offers improved system efficiency. The features include integrated soft-start, cycle-by-cycle current limiting and thermal shutdown protection.
Up to 96% efficiency
Best-in-class ripple, including PFM mode
Synchronous rectification for higher efficiency
Low quiescent current
Thermal limit protection
Short-circuit protection
All pins are fully ESD protected
ESD sensitive device, take proper precaution while handling the device.

Show

NCP1521BSNT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TSOT-23-5
Frequency	1.50 MHz
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	0.9V ~ 3.9V
Output Current	600 mA
Number of Positions	5 Position
Switching Frequency	1.8 MHz
Topology	Step-Down
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.7 V
Output Voltage (Max)	3.9 V
Output Voltage (Min)	0.9 V
Output Current (Max)	0.6 A
Output Current (Min)	100 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	2.7V ~ 5.5V
	Show
Size-Length	3 mm
Size-Width	1.5 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
