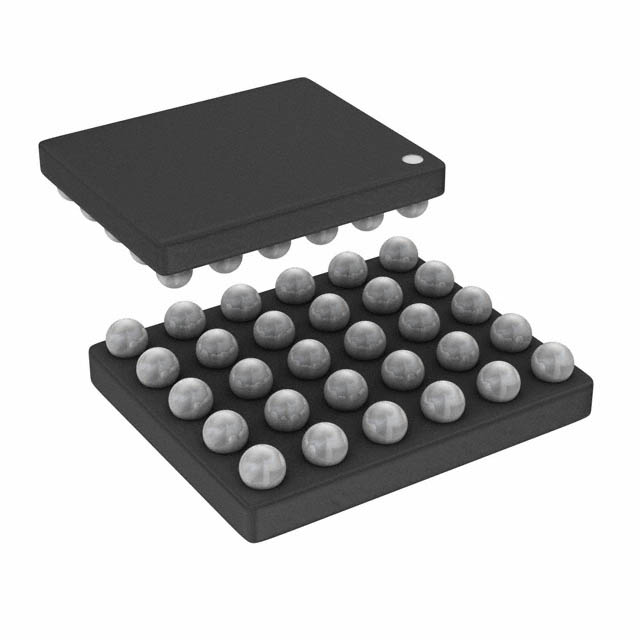

Image is for your reference only,please check specifications for details

LM3632AYFFR - TI
Manufacturer:
TI
ManyChip's Part#:
MC29653169
Category:
LED Driver, LED Display Driver
Package:
DSBGA-30
Datasheet:
Datasheet 3D Model
Description:
Single-Chip Backlight with Bias Power and 1.5A Flash LED Driver 30-DSBGA -40℃ to 85℃
Stock Locations:
Availability:
303 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.92

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM3632A integrates the WLED drivers for both the backlight of the LCD panel and the camera flash along with the bias power for the LCD panel into one device. The device has all the safety features required in LED drivers with up to 90% efficiency and bias positive/negative power rails achieving 1.5% accuracy. Capable of driving up to 16 backlight LEDs, the device is ideal for small- to medium-size displays. A 1.5-A constant-current LED driver powered by a synchronous boost converter can be used for flash applications. The high-side flash current source allows for grounded cathode LED operation.
A high level of integration and programmability allows the LM3632A to address a variety of applications without the need for hardware changes.

Show

LM3632AYFFR Specifications
