Description

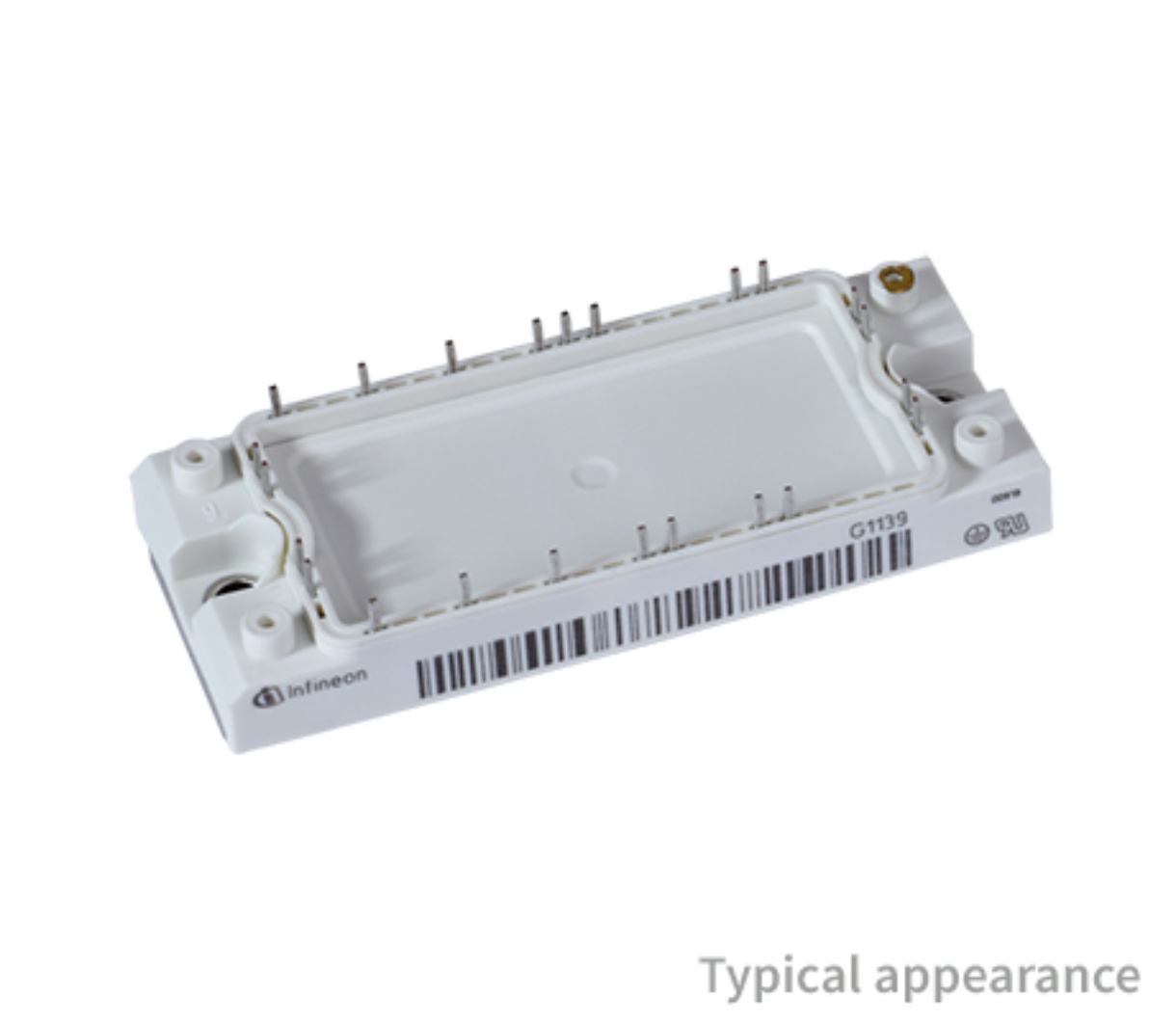

The FP40R12KE3 is a 3-phase 1200V PIM IGBT module with Trench/Fieldstop IGBT3 emitter controlled diode and NTC. It features low stray inductance module design and copper base plate for optimized heat spread as well as solderable pins.
High reliability and power density
Low switching losses
High switching frequency
Configuration flexibility
Compact module concept

Show

FP40R12KE3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Number of Pins	24 Pin
Case/Package	EconoPIM-2
Power Rating	200 W
Number of Positions	24 Position
Polarity	N-Channel
Power Dissipation	200 W
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	210 W
	Show
Size-Length	107.5 mm
Size-Width	45 mm
Size-Height	17 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Box
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
