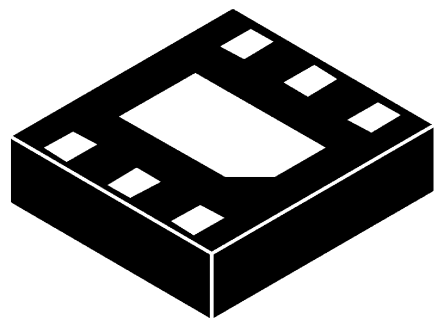

Image is for your reference only,please check specifications for details
- NCP1599MNTWG - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC20720254
-
Category:DC to DC Converter
-
Package:DFN-6
-
Datasheet:Datasheet 3D Model
-
Description:Преобразователь DC-DC 3В до 5.5В, понижающий, один выход 0.8В до 3.3В, 3А, 6-выводной DFN с открытой площадкой, лента и катушка
-
Stock Locations:
-
Availability:68 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.09
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Преобразователь NCP1599MNTWG представляет собой синхронный широтно-импульсный преобразователь (ШИМ) с высоким выходным током, который объединяет P-канальный МОП-транзистор с низким сопротивлением на верхнем плече и N-канальный МОП-транзистор на нижнем плече. Он использует внутренне скомпенсированное управление по току для обеспечения хорошей реакции на переходные процессы, простоты реализации и отличной стабильности контура. Включает внутреннюю фиксированную частоту переключения (FSW) и внутренний плавный пуск для ограничения пускового тока. Другие особенности: поцикловое ограничение тока, защита от короткого замыкания, режим энергосбережения и тепловая защита.
- Поцикловое ограничение тока
- Защита от короткого замыкания с режимом прерывистого перезапуска (hiccup)
- Защита от перегрева
- Внутренний плавный пуск
- Запуск с предварительно смещённой выходной нагрузкой
- Режим энергосбережения при малой нагрузке
NCP1599MNTWG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | DFN-6 |
| Frequency | 1 MHz |
| Supply Voltage (DC) | 3.00V (min) |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 5.50 V |
| Output Voltage | 3.3 V |
| Output Current | 3 A |
| Number of Positions | 6 Position |
| Switching Frequency | 1 MHz |
| Topology | Step-Down |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 3 V |
| Output Voltage (Max) | 4.51 V |
| Output Voltage (Min) | 0.8 V |
| Output Current (Max) | 3 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 3 V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 3 V |
| Input Voltage | 5.5 V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 3 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
