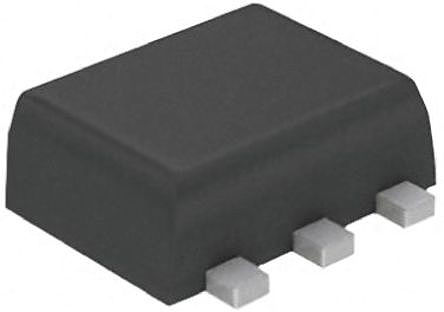

Image is for your reference only,please check specifications for details

NCP170AXV300T2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC22625038
Category:
Voltage Regulator
Package:
SOT-563-6
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCP170AXV300T2G Fixed LDO Voltage Regulator, 2.2V to 5.5V In, 190mV Dropout, 3V/150mA Out, SOT-563-6
Stock Locations:
Availability:
496 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.41

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCP170AXV300T2G is an ultra low IQ 150mA CMOS LDO regulator in 6 pin SOT-563 package. This regulator is designed specifically for portable battery powered applications which require ultra low quiescent current. The ultra low consumption of (typ) 500nA ensures long battery life and dynamic transient boost feature improves device transient response for wireless communication applications. It incorporates ESD protection and is tested by the following methods, ESD human body model tested per AEC-Q100-002 (EIA/JESD22-A114), ESD machine model tested per AEC-Q100-003 (EIA/JESD22-A115) and latch-up current maximum rating tested per JEDEC standard JESD78. It is used in battery powered equipments, cameras, image sensors and camcorders.
Input voltage range from 2.2V to 5.5V
Nominal output voltage 3V
High output voltage accuracy of ±1%
Stable with ceramic capacitors 1F
Over current protection
Thermal shutdown protection
Maximum quiescent current of 0.9µA at IOUT = 0mA
Power supply rejection ratio of 47dB at IOUT = 150mA
NCP170A for active discharge option
Low dropout of 190mV (typ) at 150mA

Show

NCP170AXV300T2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-563-6
Number of Outputs	1 Output
Output Voltage	3 V
Output Current	150 mA
Number of Positions	6 Position
Quiescent Current	0.9 µA
voltage rating	190 mV
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.2 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Input Voltage	≤5.5 V
	Show
Size-Length	1.7 mm
Size-Width	1.3 mm
Size-Height	0.6 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
