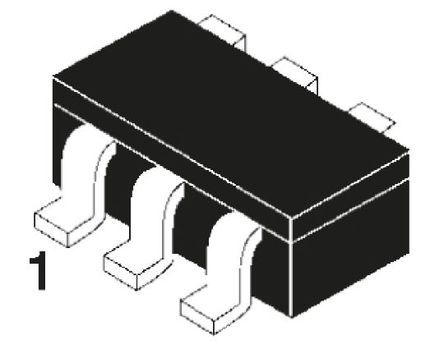

Image is for your reference only,please check specifications for details

NCP1729SN35T1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC820966
Category:
DC to DC Converter
Package:
TSOT-23-6
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCP1729SN35T1G DC-DC Adjustable Charge Pump Voltage Converter, 1.15V to 5.5V in, -5.5V to -1.15V/50mA out, TSOP-6
Stock Locations:
Availability:
9,900 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.13

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCP1729SN35T1G is a switched-capacitor CMOS charge-pump Voltage Inverter designed for operation over an input voltage range of 1.5 to 5.5V with an output current capability in excess of 50mA. The operating current consumption is only 122µA and a power saving shutdown input is provided to further reduce the current to a mere 0.4µA. The device contains a 35kHz oscillator that drives four low resistance MOSFET switches, yielding a low output resistance of 26R and a voltage conversion efficiency of 99%. This device requires only two external 3.3µF capacitors for a complete inverter making it an ideal solution for numerous battery-powered and board level applications. The charge-pump converter inverts the voltage applied to the Vin pin. Conversion consists of a 2-phase operation.
Charge pump capacitor losses due to equivalent series resistance
I²R Losses due to the on-resistance of the MOSFET switches on-board the charge pump

Show

NCP1729SN35T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSOT-23-6
Frequency	33.5 kHz
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	-5.00 V, -6.00 V (max)
Output Current	50 mA
Supply Current	0.2 mA
Number of Positions	6 Position
Power Dissipation	0.313 W
Switching Frequency	35 kHz
Input Voltage (Max)	5.5 V
Input Voltage (Min)	1.15 V
Output Current (Max)	100 mA
Operating Temperature (Max)	85 ℃
Power Dissipation (Max)	313 mW
Input Voltage	1.15V ~ 5.5V
	Show
Size-Length	3 mm
Size-Width	1.5 mm
Size-Height	0.94 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
