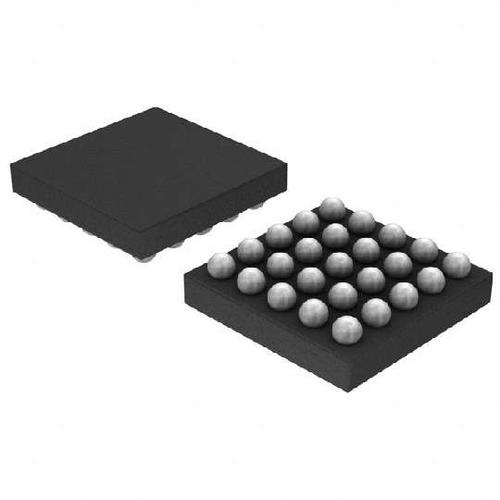

Image is for your reference only,please check specifications for details

NCP1854FCCT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC63600196
Category:
Battery Management IC
Package:
Flip-Chip-25
Datasheet:
Datasheet 3D Model
Description:
Switching Battery Charger, 2.5A, with Power Path Management Switching Battery Charger, 2.5A, with Power Path Manage...
Stock Locations:
Availability:
9,986 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.3

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCP1854 is a fully programmable single cell Lithium-ion switching battery charger optimized for charging from a USB compliant input supply and AC adaptor power source. The device integrates a synchronous PWM controller, power MOSFETs, and the entire charge cycle monitoring including safety features under software supervision. An optional battery FET can be placed between the system and the battery in order to isolate and supply the system. The NCP1854 junction temperature is monitored during charge cycle and both current and voltage can be modified accordingly through I2C setting. The charger activity and status are reported through a dedicated pin to the system. The input pin is protected against overvoltages.
Features
---
|
2.5 A Buck Converter with Integrated Pass Devices
Input Current Limiting to Comply to USB Standard
Automatic Charge Current for AC Adaptor Charging
High Accuracy Voltage and Current Regulation
Input Overvoltage Protection up to +28 V
Factory Mode
1000 mA Boosted Supply for USB OTG Peripherals
Reverse Leakage Protection Prevents Battery Discharge
Protected USB Transceiver Supply Switch
Dynamic Power Path with Optional Battery FET
Silicon Temperature Supervision for Optimized Charge Cycle
Safety Timers
Flag Output for Charge Status and Interrupts
I2C Control Bus up to 3.4 MHz

Show

NCP1854FCCT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	25 Pin
Case/Package	Flip-Chip-25
Input Voltage (DC)	28.0 V
Output Voltage	3.3V ~ 4.5V
Number of Positions	25 Position
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	7.3 V
Input Voltage	28 V
	Show
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
