Description

Voltage Detector Series
The NCP300 and NCP301 series are second generation ultra−low current voltage detectors. These devices are specifically designed for use as reset controllers in portable microprocessor based systems where extended battery life is paramount.
Features
•Quiescent Current of 0.5 A Typical
•High Accuracy Undervoltage Threshold of 2.0%
•Wide Operating Voltage Range of 0.8 V to 10 V
•Complementary or Open Drain Reset Output
•Active Low or Active High Reset Output
•Specified Over the −40°C to +125°C Temperature Range
(Except for Voltage Options from 0.9 to 1.1 V)
•Pb−Free Packages are Available
Typical Applications
•Microprocessor Reset Controller
•Low Battery Detection
•Power Fail Indicator
•Battery Backup Detection

Show

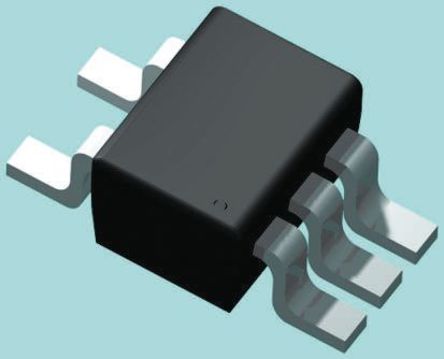

NCP301LSN18T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Supply Voltage (DC)	800mV (min)
Halogen Free Status	Halogen Free
Supply Current	480 nA
Number of Positions	5 Position
Threshold Voltage	1.8 V
Reset Threshold Voltage (Min)	1.764 V
Reset Threshold Voltage (Max)	1.836 V
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	2 %
Supply Voltage (Max)	10 V
	Show
Size-Length	3 mm
Size-Width	1.5 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 125℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
