GENERAL DESCRIPTION
The ADG506A and ADG507A are CMOS monolithic analog multiplexers with 16 channels and dual 8 channels, respectively. The ADG506A switches one of 16 inputs to a common output, depending on the state of four binary addresses and an enable input. The ADG507A switches one of eight differential inputs to a common differential output, depending on the state of three binary addresses and an enable input. Both devices have TTL and 5 V CMOS logic compatible digital inputs.
PRODUCT HIGHLIGHTS
1\. Single/Dual Supply Specifications with a Wide Tolerance
The devices are specified in the 10.8 V to 16.5 V range for both single and dual supplies.
2\. Extended Signal Range
The enhanced LC2MOS processing results in a high break down and an increased analog signal range of VSS to VDD.
3\. Break-Before-Make Switching
Switches are guaranteed break-before-make so input signals are protected against momentary shorting.
4\. Low Leakage
Leakage currents in the range of 20 pA make these multiplexers suitable for high precision circuits.
FEATURES
44 V Supply Maximum Rating
VSS to VDD Analog Signal Range
Single/Dual Supply Specifications
Wide Supply Ranges (10.8 V to 16.5 V)
Extended Plastic Temperature Range (–408C to +858C)
Low Power Dissipation (28 mW max)
Low Leakage (20 pA typ)
Available in 28-Lead DIP, SOIC, PLCC, TSSOP and LCCC Packages
Superior Alternative to:
DG506A, Hl-506
DG507A, Hl-507

Show

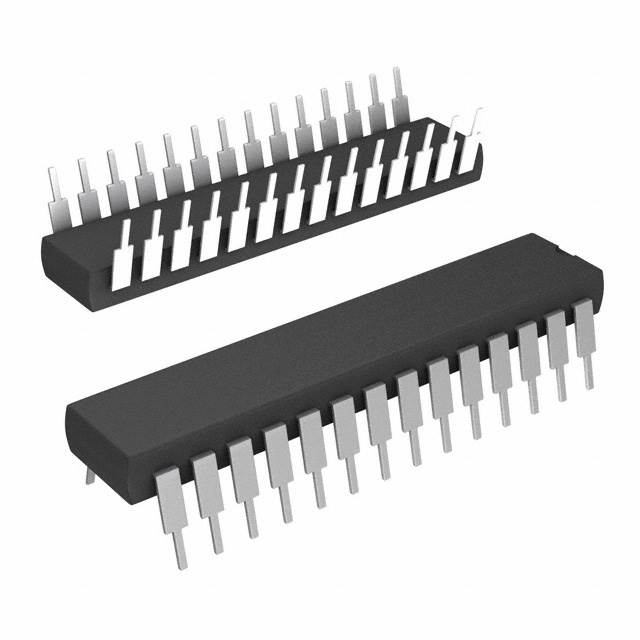

ADG507AKN Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	28 Pin
Case/Package	DIP-28
Supply Voltage (DC)	16.5V (max)
Supply Current	600 nA
Number of Circuits	2 Circuit
Number of Channels	8 Channel
Drain to Source Resistance (on) (Rds)	600 Ω (max)
Power Dissipation	470 mW
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	470 mW
	Show
Size-Height	4.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
