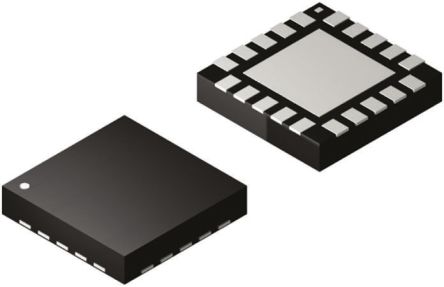

TPS51216RUKT - TI
Manufacturer:
TI
ManyChip's Part#:
MC8836800
Category:
Voltage Regulator
Package:
QFN-20
Datasheet:
Datasheet 3D Model
Description:
Special Function IC, Synchronous Buck Controller for DDR2/DDR3/DDR3L, LDO, 2A, 3V to 28V, QFN-20
Stock Locations:
Availability:
287 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.56

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS51216RUKT is a Complete Memory Power Supply IC that provides a complete power supply for DDR2, DDR3 and DDR3L memory systems in the lowest total cost and minimum space. It integrates a synchronous buck regulator controller (VDDQ). The TPS51216 employs D-CAP™ mode coupled with 300/400kHz frequencies for ease-of-use and fast transient response. The VTTREF tracks VDDQ/2 within excellent 0.8% accuracy. The VTT, which provides 2-A sink/source peak current capabilities, requires only 10µF of ceramic capacitance. It supports flexible power state control, placing VTT at high-Z in S3 and discharging VDDQ, VTT and VTTREF (soft-OFF) in S4/S5 state. Programmable OCL with low-side MOSFET RDS(on) sensing.
0.7 to 1.8V Output voltage range
0.8% VREF Accuracy
D-CAP™ mode for fast transient response
Optimized efficiency at light and heavy loads with auto-skip function
Supports Soft-OFF in S4/S5 states
OCL/OVP/UVP/UVLO Protections
Powergood output
2A LDO(VTT), Buffered reference(VTTREF)
2A (Peak) Sink and source current
Requires only 10µF of ceramic output capacitance
Buffered, low noise, 10mA VTTRE output
0.8% VTTREF, 20mV VTT accuracy
Support high-Z in S3 and Soft-OFF in S4/S5
Thermal shutdown

Show

TPS51216RUKT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	QFN-20
Supply Voltage (DC)	3.00V (min)
Number of Outputs	1 Output
Output Voltage	0.7V ~ 1.8V
Output Current	20 A
Number of Positions	20 Position
Quiescent Current	600 µA
Number of Regulated Outputs	1 Output
Switching Frequency	400 kHz
Thermal Shutdown	Yes
Topology	Buck
Input Voltage (Max)	28 V
Input Voltage (Min)	3 V
Output Voltage (Max)	1.8 V
Output Voltage (Min)	0.7 V
Output Current (Max)	25 A
Output Current (Min)	2 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	28 V
Supply Voltage (Min)	3 V
Input Voltage	3V ~ 28V
	Show
Size-Length	3.1 mm
Size-Width	3.1 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
