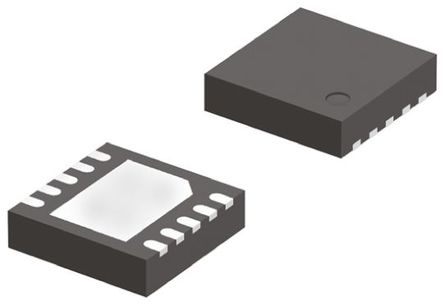

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

NCP3337MNADJR2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	DFN-10
Number of Outputs	1 Output
Output Voltage	1.25V ~ 10V
Output Current	700 mA
Supply Current	220µA ~ 14mA
Number of Positions	10 Position
Polarity	P-Channel
Quiescent Current	0.22 mA
voltage rating	620 mV
Input Voltage (Max)	12 V
Input Voltage (Min)	2.9 V
Output Voltage (Max)	10 V
Output Voltage (Min)	1.25 V
Output Current (Max)	800 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±0.9 %
Input Voltage	2.9V ~ 12V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
