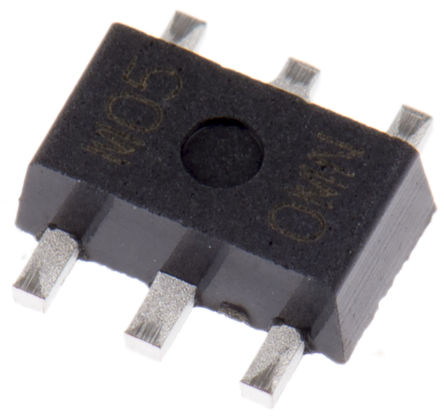

Image is for your reference only,please check specifications for details

NCP4641H050T1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC36902400
Category:
Voltage Regulator
Package:
SOT-89-5
Datasheet:
Datasheet 3D Model
Description:
NCP4641H050T1G, Single Linear Voltage Regulator, 150mA 5V, +/-2%, 5Pin SOT-89
Stock Locations:
Availability:
112 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.27

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCP4641H050T1G is a 5V fixed output CMOS Linear Regulator with high input voltage and ultra-low supply current. It incorporates multiple protection features such as peak current limit, short circuit current limit and thermal shutdown to ensure a very robust device. A high maximum input voltage tolerance of 50V and a wide temperature range make the device suitable for a variety of demanding applications.
±2% Output voltage accuracy
0.05%/V Line regulation (typical)

Show

NCP4641H050T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-89-5
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	5 V
Output Current	150 mA
Supply Current	20 µA
Number of Positions	5 Position
Polarity	P-Channel
Power Dissipation	900 mW
Quiescent Current	20 µA
voltage rating	0.2V @20mA
Input Voltage (Max)	36 V
Input Voltage (Min)	4 V
Output Voltage (Min)	5 V
Output Current (Max)	150 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	900 mW
Accuracy	±2 %
Input Voltage	≤36 V
	Show
Size-Length	4.6 mm
Size-Width	2.6 mm
Size-Height	1.6 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
