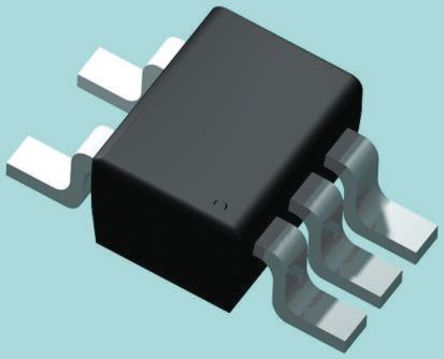

NCP500SN33T1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC14034425
Category:
Voltage Regulator
Package:
TSOT-23-5
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCP500SN33T1G Fixed LDO Voltage Regulator, 1.8V to 6V, 150mV Dropout, 3.3Vout, 150mAout, TSOP-5
Stock Locations:
Availability:
402 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.58

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCP500 Series of fixed output low dropout linear regulators are designed for portable battery powered applications which require low noise operation, fast enable response time, and low dropout. The device achieves its low noise performance without the need of an external noise bypass capacitor. Each device contains a voltage reference unit, an error amplifier, a PMOS power transistor, and resistors for setting output voltage, and current limit and temperature
limit protection circuits. The NCP500 has been designed to be used with low cost ceramic capacitors and requires a minimum output capacitor of 1.0 μF.
**Features:**
* Ultra-Low Dropout Voltage of 170 mV at 150 mA
* Fast Enable Turn-On Time of 20 μs
* Wide Operating Voltage Range of 1.8 V to 6.0 V
* Excellent Line and Load Regulation
* High Accuracy Output Voltage of 2.5%
* Enable Can Be Driven Directly by 1.0 V Logic
* Typical RMS Noise Voltage 50 V with No Bypass Capacitor (BW = 10 Hz to 100 kHz)
* Very Small DFN 2x2.2 Package
* Pb-Free Packages are Available

Show

NCP500SN33T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TSOT-23-5
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Input Voltage (DC)	6.00V (max)
Output Voltage	3.3 V
Output Current	150 mA
Supply Current	1µA ~ 300µA
Number of Positions	5 Position
Polarity	P-Channel
Quiescent Current	300 µA
voltage rating	150 mV
Input Bias Current	3 nA
Input Voltage (Max)	6 V
Input Voltage (Min)	1.8 V
Output Voltage (Min)	3.3 V
Output Current (Max)	150 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±2.5 %
Supply Voltage	1.8V ~ 6V
Input Voltage	≤6 V
	Show
Size-Length	3.1 mm
Size-Width	1.7 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99
