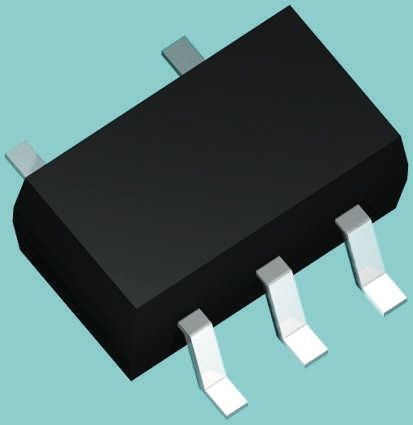

Image is for your reference only,please check specifications for details

NCP508SQ15T1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC34249210
Category:
Voltage Regulator
Package:
SC-70-5
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCP508SQ15T1G Fixed LDO Voltage Regulator, 13V in, 180mV Dropout, 1.5V/50mA out, -5
Stock Locations:
Availability:
10,049 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.23

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

NCP508SQ15T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SC-70-5
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	1.5 V
Output Current	50 mA
Supply Current	1µA ~ 1.9mA
Number of Positions	5 Position
Polarity	P-Channel
Quiescent Current	1 µA
voltage rating	180 mV
Input Voltage (Max)	7 V
Input Voltage (Min)	1.8 V
Output Voltage (Min)	1.5 V
Output Current (Max)	50 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±2 %
Input Voltage	≤7 V
	Show
Size-Length	2.2 mm
Size-Width	1.35 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
