NCP5663DSADJR4G ON Semiconductor - Voltage Regulator

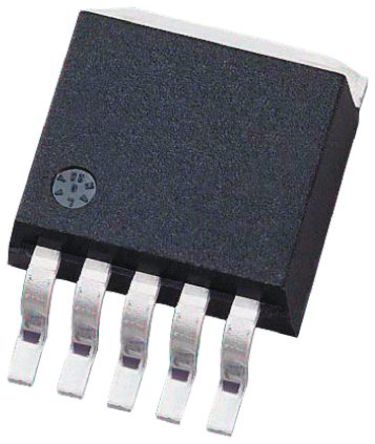

Image is for your reference only,please check specifications for details

NCP5663DSADJR4G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC3616437
Category:
Voltage Regulator
Package:
TO-263-6
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCP5663DSADJR4G Линейный стабилизатор напряжения LDO, регулируемый, вход от 2 В до 9 В, падение 1 В, выход от 1,5 В до 7 В / 3 А, TO-252-5
Stock Locations:
Availability:
2 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.57

Updated at 16/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

* Сверхбыстрый переходный отклик (время установления: 1–3 мкс) * Низкий уровень шума без конденсатора на выходе (28 мкВ ср. кв.) * Низкий ток земли, не зависящий от нагрузки (макс. 3,0 мА) * Версии с фиксированным/регулируемым выходным напряжением * Функция включения * Флаг ошибки (версия с фиксированным выходом) * Защита от ограничения тока * Тепловая защита * Опорное напряжение 0,9 В для работы со сверхнизким выходным напряжением * Коэффициент подавления пульсаций питания > 65 дБ

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TO-263-6
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	≥1.50 V
Output Current	3 A
Supply Current	3 mA
Number of Positions	5 Position
Polarity	P-Channel
Quiescent Current	3 mA
voltage rating	1 V
Input Voltage (Max)	9 V
Input Voltage (Min)	2 V
Output Voltage (Max)	7 V
Output Voltage (Min)	1.5 V
Output Current (Max)	3 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±0.2 %
Input Voltage	2V ~ 9V
	Show
Size-Length	10.24 mm
Size-Width	9.347 mm
Size-Height	4.57 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
