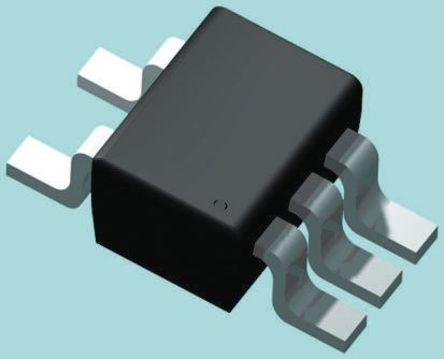

Image is for your reference only,please check specifications for details

NCP571SN10T1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC42788985
Category:
Voltage Regulator
Package:
TSOT-23-5
Datasheet:
Datasheet 3D Model
Description:
NCP571SN10T1G, LDO Voltage Regulator, 150mA, 1V +/-3%, 0 to 12Vin, 5Pin TSOP
Stock Locations:
Availability:
1,552 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.62

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

NCP571SN10T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TSOT-23-5
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	1 V
Output Current	150 mA
Number of Positions	5 Position
Polarity	P-Channel
Quiescent Current	0.008 mA
voltage rating	550 mV
Input Voltage (Max)	12 V
Input Voltage (Min)	0 V
Output Current (Max)	150 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±3 %
Input Voltage	≤12 V
	Show
Size-Length	3 mm
Size-Width	1.5 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
