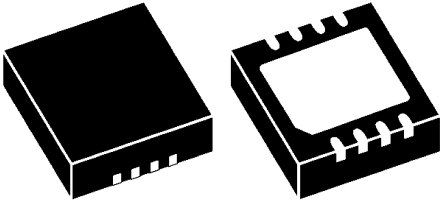

Image is for your reference only,please check specifications for details

NCP59151MN50TYG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC47706433
Category:
Voltage Regulator
Package:
DFN-8
Datasheet:
Datasheet 3D Model
Description:
NCP59151MN50TYG, LDO Voltage Regulator, 1.5A, 5V +/-2%, 2.24 to 13.5Vin, 8Pin DFN
Stock Locations:
Availability:
279 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.77

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

NCP59151MN50TYG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	DFN-8
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	5 V
Output Current	1.5 A
Number of Positions	8 Position
Polarity	P-Channel
Quiescent Current	80 mA
voltage rating	300 mV
Input Voltage (Max)	13.5 V
Input Voltage (Min)	2.24 V
Output Current (Max)	1.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Input Voltage	≤13.5 V
	Show
Size-Length	4 mm
Size-Width	4 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99
