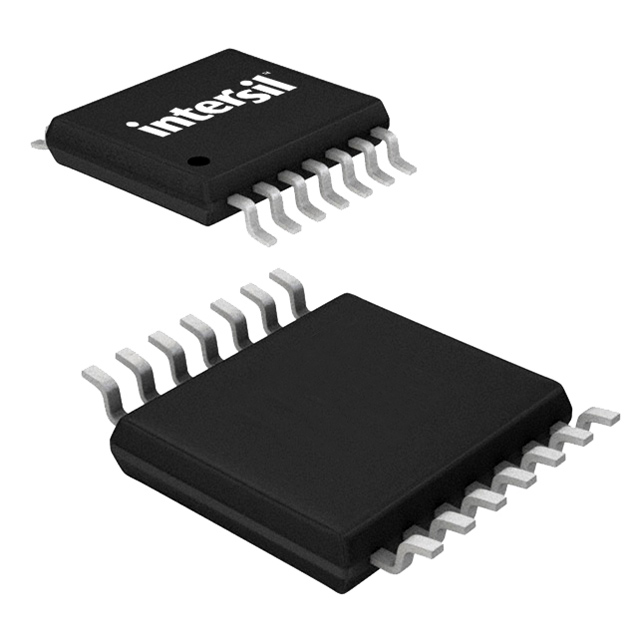

- EL5420CRZ - Intersil
-
Manufacturer:Intersil
-
ManyChip's Part#:MC111338464
-
Category:Amplifier, Buffer IC
-
Package:TSSOP-14
-
Datasheet:Datasheet 3D Model
-
Description:12MHz Rail-to-Rail Input-Output Op Amps; QFN16, SOIC14, TSSOP14; Temp Range: -40° to 85℃
-
Stock Locations:
-
Availability:510 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.9
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The EL5120, EL5220, and EL5420 are low power, high voltage, rail-to-rail input-output amplifiers. The EL5120 contains a single amplifier, the EL5220 contains two amplifiers, and the EL5420 contains four amplifiers. Operating on supplies ranging from 5V to 15V, while consuming only 500µA per amplifier, the EL5120, EL5220, and EL5420 have a bandwidth of 12MHz (-3dB). They also provide common mode input ability beyond the supply rails, as well as rail-to-rail output capability. This enables these amplifiers to offer maximum dynamic range at any supply voltage.
- Features
- • 12MHz -3dB bandwidth
- • Supply voltage = 4.5V to 16.5V
- • Low supply current (per amplifier) = 500µA
- • High slew rate = 10V/µs
- • Unity-gain stable
- • Beyond the rails input capability
- • Rail-to-rail output swing
- • Ultra-small package
- • Pb-Free available (RoHS compliant)
- Applications
- • TFT-LCD drive circuits
- • Electronics notebooks
- • Electronics games
- • Touch-screen displays
- • Personal communication devices
- • Personal digital assistants (PDA)
- • Portable instrumentation
- • Sampling ADC amplifiers
- • Wireless LANs
- • Office automation
- • Active filters
- • ADC/DAC buffer
EL5420CRZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 14 Pin |
| Case/Package | TSSOP-14 |
| Output Current | 30mA @5V |
| Supply Current | 500 µA |
| Number of Circuits | 4 Circuit |
| Number of Channels | 4 Channel |
| Bandwidth | 12.0 MHz |
| Slew Rate | 10.0 V/μs |
| Gain Bandwidth Product | 8 MHz |
| Input Offset Voltage | 2 mV |
| Input Bias Current | 2 nA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 12 MHz |
| Gain Bandwidth | 8 MHz |
| Minimum CMRR Range | 45 dB |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
