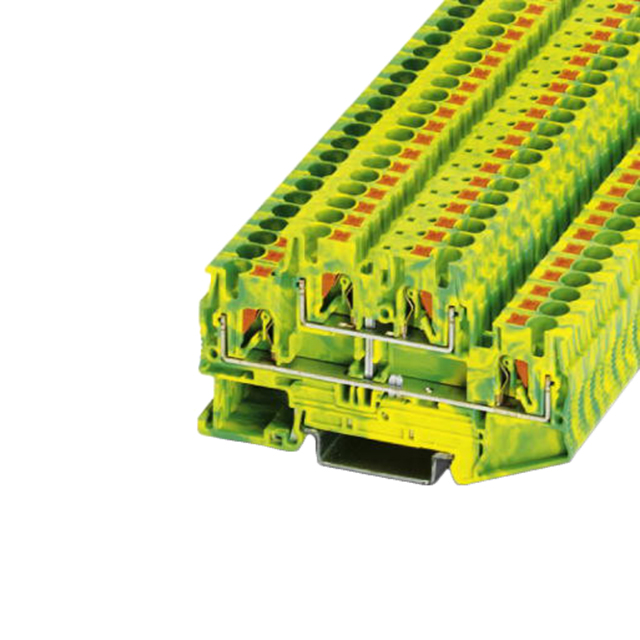

Image is for your reference only,please check specifications for details
- 3211854 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC61231551
-
Category:Terminal Block, Connector Terminal
-
Datasheet:Datasheet 3D Model
-
Description:Conn; Term Blk; Feed Thru; 2; 4; 0.2-6 sq. mm; 24-10AWG; Green-Yellow; 6.2mm W
-
Stock Locations:
-
Availability:56 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 11.54
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Reduce fatigue, save time and simplify wiring with Phoenix Contact"s push-in terminal blocks. These tool-less terminal blocks use a direct push-in connection and require 50 percent lower insertion force when connecting solid conductors or conductors with ferrules. As part of the CLIPLINE Complete system, push-in terminal blocks are compatible with standard system accessories, including bridging, checking and marking. They deliver maximum flexibility in a variety of options, including feed-through, multi-conductor, component and pluggable terminal blocks, and can be combined with screw, spring-cage and fast connection terminal blocks.*Features:**
- * Orange Push Button Located on the Actuation Shaft Opens the Spring to the Maximum Wiring Space of (4 mm2)/AWG 12 for Fast, Clear Wiring and High-Contacting Safety
- * Three Standard Marker Grooves Allow Individual Terminal Point Labeling with the One Marking Material
- * Front Connection for Space-Saving Convenient Wiring
3211854 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Number of Contacts | 4 Contact |
| Wire Gauge | 10AWG ~ 24AWG |
| Number of Rows | 4 Row |
| Flammability Rating | UL 94 V-0 |
| Number of Positions | 4 Position |
| Voltage Rating (Max) | 300 V |
| Operating Voltage (Max) | 300 V |
| Show | |
| Size-Length | 83.5 mm |
| Size-Width | 6.2 mm |
| Size-Height | 55 mm |
| Housing Color | Green, Yellow |
| Color | Green, Yellow |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536904000 |
| ECCN Code | EAR99 |
