Description

High speed switching transistor Features 1) Low VCE(sat) (Typ. 0.15V at IC / IB = 3 / 0.15A) 2) High speed switching (tf : Typ. 0.1 µs at IC = 3A) 3) Wide SOA. (safe operating area)

Show

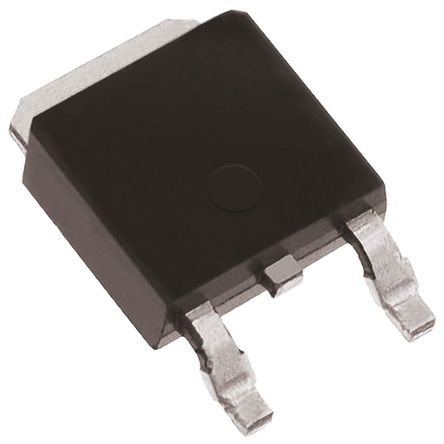

2SC5103TLQ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Frequency	80 MHz
Voltage Rating (DC)	60.0 V
Current Rating	5.00 A
Power Rating	1 W
Polarity	N-Channel, NPN
Power Dissipation	1 W
Breakdown Voltage (Collector to Emitter)	60 V
Continuous Collector Current	5A
hFE Min	120 @1A, 2V
Input Power (Max)	1 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1000 mW
	Show
Size-Length	6.7 mm
Size-Width	5.8 mm
Size-Height	2.5 mm
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Not Recommended
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
