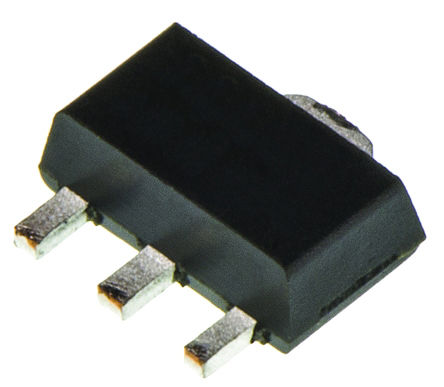

If you need a MOSFET for radio frequency environments, STMicroelectronics offers this PD85004 RF amplifier that amplifies and switches between electronic signals. Its maximum power dissipation is 6000 mW. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This RF power MOSFET has an operating temperature range of -65 °C to 150 °C. This N channel RF power MOSFET operates in enhancement mode. Its maximum frequency is 1000 MHz.

Show

PD85004 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-89
Frequency	870 MHz
Current Rating	2 A
Number of Positions	3 Position
Power Dissipation	6 W
Drain to Source Voltage (Vds)	40 V
Output Power	4 W
Gain	17 dB
Test Current	50 mA
Input Capacitance (Ciss)	16pF @13.6V(Vds)
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	6000 mW
Voltage Rating	40 V
	Show
Size-Length	4.6 mm
Size-Width	2.6 mm
Size-Height	0.44 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
