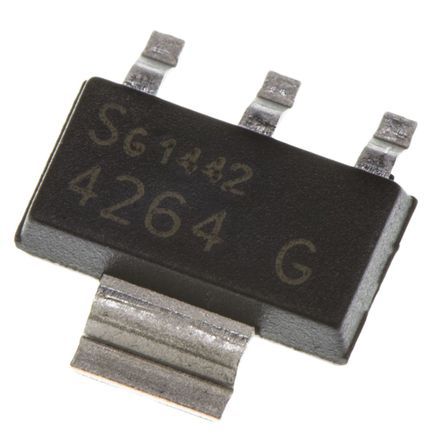

Image is for your reference only,please check specifications for details

TLE4264GHTSA1 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC76002936
Category:
LED Driver
Package:
SOT-223
Datasheet:
Datasheet 3D Model
Description:
INFINEON TLE4264GHTSA1 Fixed LDO Voltage Regulator, 5.5V to 45V, 250mV Dropout, 5Vout, 100mAout, SOT-223-3
Stock Locations:
Availability:
44 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.51

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

TLE4264GHTSA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-223
Number of Outputs	1 Output
Output Voltage	5 V
Output Current	100 mA
Number of Positions	3 Position
Quiescent Current	9 mA
voltage rating	250 mV
Input Voltage (Max)	45 V
Input Voltage (Min)	5.5 V
Output Current (Max)	120 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±2 %
Input Voltage	45 V
	Show
Size-Length	6.5 mm
Size-Width	3.5 mm
Size-Height	1.6 mm
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
